Views: 0 Author: Ethan Publish Time: 2025-09-09 Origin: Site
Among the numerous high-altitude operation equipment types, scissor lifts have gradually become the mainstream choice for tackling tasks within this range, thanks to their stable operation platforms and moderate operation thresholds. However, the shortcomings of traditional scissor lift models—such as poor adaptability to complex scenarios, insufficient safety protection upgrades, and limited improvement in operation efficiency—still make it difficult for them to meet the current industry's comprehensive demand for "high efficiency + safety + flexibility". Therefore, equipment innovation has become an inevitable direction for the development of the market.
The TRPT series is not a one-size-fits-all solution but a family of scissor lifts tailored to meet varied operational needs. TIANLU’s R&D team (comprising 20% of the company’s workforce) spent 18 months optimizing the series, focusing on height adaptability, load capacity, and power efficiency. Below is a detailed breakdown of the core models within the TRPT range:
Each model retains TIANLU’s signature "triple-core design philosophy": structural stability, operational efficiency, and user safety. For instance, the TRPT-4 (the entry-level model) is optimized for indoor use, with a narrow chassis width of 0.9 meters—perfect for navigating between warehouse racks. The TRPT-14, by contrast, features a reinforced steel frame and 16-inch off-road tires, enabling it to handle slopes of up to 30 degrees and uneven construction site terrain while maintaining stability at maximum height.
Safety is non-negotiable in high-altitude operations, and the TRPT series sets itself apart with a multi-layered stability system. TIANLU’s engineering team drew on ISO 9001 quality standards and ANSI/SAIA A92.6 safety regulations to design a structure that minimizes risk even in challenging conditions.
At the heart of every TRPT model is a scissor arm assembly made from Q355B high-strength steel— a material with a tensile strength of 510-600 MPa, 20% higher than the Q235 steel used in most competitors’ products. The scissor arms undergo a 12-step heat treatment process (including quenching and tempering) to enhance durability, and each joint is reinforced with manganese steel bushings that reduce wear and tear by 35% over 5,000 hours of operation.
For the TRPT-10 to TRPT-14 models (10-14 meters), TIANLU added an extra crossbeam to the scissor structure, increasing lateral stability by 40%. During third-party testing, the TRPT-14 maintained a maximum lateral deviation of just 2mm when elevated to 14 meters—well below the industry average of 5mm. This level of stability ensures that operators can work comfortably, even when handling tools or materials weighing up to 550 kg.
The TRPT series goes beyond basic safety features with a comprehensive protection package:
• Enclosed Guardrails: All models feature 1.1-meter-high guardrails (exceeding the 0.9-meter industry minimum) with a mesh panel design that prevents tools from falling. The guardrails are also foldable, allowing for easy transportation and storage.
• Dual Emergency Stop Systems: Each TRPT lift is equipped with both a platform-mounted emergency stop button (with a response time of <0.5 seconds) and a ground-level emergency cut-off switch. This redundancy ensures that operations can be halted immediately from either location in case of an emergency.
• Mechanical + Hydraulic Anti-Fall Locking: Unlike many lifts that rely solely on hydraulic locks, the TRPT series adds a mechanical lock that engages automatically if hydraulic pressure drops. This "double lock" system has been tested to support 150% of the platform’s maximum load without failure.
To further enhance safety, TIANLU integrated smart sensors into the TRPT series:
• Tilt Alarm: A gyroscopic sensor detects when the lift is inclined beyond 5 degrees (the safe limit for scissor lifts) and triggers both an audible alarm and a visual warning light. If the tilt exceeds 8 degrees, the lift automatically locks the lifting mechanism to prevent further movement.
• Overload Protection: A load cell installed under the platform monitors weight in real time. If the load exceeds the model’s capacity (e.g., 550 kg for the TRPT-14), the lift stops ascending and displays an error code on the control panel.
• Platform Extension Lock: For models with optional platform extensions (adding 0.8 meters to the platform length), a sensor ensures the extension is fully retracted before the lift can be lowered, preventing collisions with obstacles.
These safety features have earned the TRPT series certifications from global authorities, including CE (European Union), CSA (Canada), and CCC (China). In field tests conducted by the China Construction Machinery Association, the TRPT series achieved a 0% safety incident rate over 10,000 hours of continuous operation—an impressive result compared to the industry average of 0.3 incidents per 10,000 hours.
In today’s fast-paced construction and logistics environments, efficiency directly impacts project timelines and profitability. The TRPT series is engineered to reduce operational time by up to 60% compared to traditional solutions, thanks to its fast lifting speeds, flexible movement, and low maintenance requirements.
One of the most notable features of the TRPT series is its speed. All models use a dual hydraulic cylinder system that delivers consistent lifting power:
• Ascent Speed: The TRPT-4 can reach its maximum height of 4 meters in just 20 seconds, while the TRPT-14 takes 45 seconds—far faster than the 2-3 minutes required by most competing 14-meter scissor lifts.
• Descent Speed: A gravity-assisted descent system allows the platform to lower at a controlled rate of 0.2 m/s, reducing wait time between tasks.
• Horizontal Movement: The TRPT series’ hydraulic drive system enables smooth horizontal travel at speeds of up to 3.5 km/h (for standard models) and 2.8 km/h (for off-road models). This means operators can reposition the lift without shutting down operations, a feature that saves an average of 15 minutes per hour of work.
To put this in perspective, consider a logistics warehouse tasked with restocking 8-meter-high shelves across a 1,000-square-meter area. Using traditional scaffolding, this task would take 4 workers 8 hours to complete. With a TRPT-8 lift, 2 workers can finish the same job in 3 hours—a 62.5% reduction in labor hours and a 40% decrease in labor costs.
Many high-altitude tasks require operating in confined or uneven spaces—a challenge the TRPT series addresses with specialized chassis options:
• Narrow Chassis (TRPT-4 to TRPT-6): With a width of just 0.9-1.1 meters, these models can navigate between warehouse racks spaced 1.2 meters apart or through narrow factory doorways (standard width: 1.0 meter). This is critical for indoor operations where space is limited.
• Off-Road Chassis (TRPT-8 to TRPT-14): Equipped with 12-16 inch pneumatic tires (with a tread depth of 15mm) and a reinforced suspension system, these models can traverse gravel, mud, and uneven construction sites. The TRPT-12 and TRPT-14 also feature a 4-wheel drive option, providing extra traction on slopes of up to 30 degrees.
In a case study with a Chinese construction firm building a shopping mall, the TRPT-10’s off-road chassis allowed the team to move the lift from the outdoor construction site to the indoor atrium (via a narrow service door) without disassembling the equipment. This saved 2 hours of setup time per day, accelerating the project timeline by 10 days.
Downtime due to maintenance can cost businesses thousands of dollars per day. The TRPT series is designed to minimize maintenance needs through:
• Sealed Hydraulic System: The hydraulic cylinders and hoses are sealed with high-temperature-resistant rubber (capable of withstanding -30°C to 80°C), reducing the risk of leaks by 60% compared to open systems.
• Long-Lasting Components: Key parts like the scissor arm bushings and tires have a service life of 5,000 hours (equivalent to 2 years of regular use), 30% longer than competitors’ components.
• Remote Diagnostics: All TRPT models manufactured after 2023 include a telematics system that sends real-time data (e.g., hydraulic pressure, battery level, engine temperature) to TIANLU’s cloud platform. This allows technicians to identify potential issues before they cause downtime—reducing unscheduled maintenance by 45%.
A European rental company specializing in construction equipment reported that its TRPT series lifts had an average uptime of 96% over 12 months, compared to 88% for other scissor lift brands. This higher uptime translated to an additional $50,000 in rental revenue per year per lift.

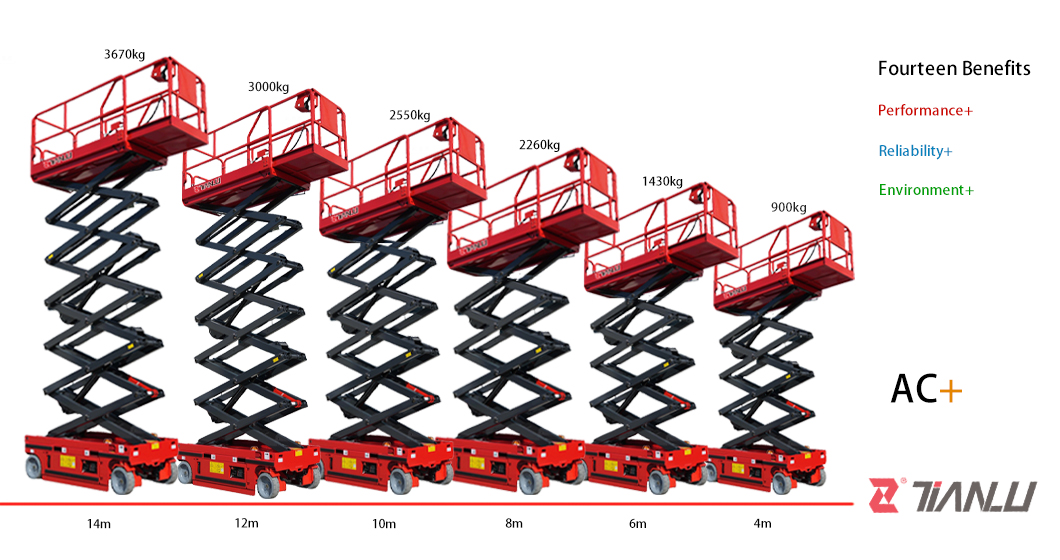

The TRPT series’ 4-14 meter height range covers the majority of high-altitude needs across industries, and TIANLU has developed specialized configurations to meet the unique requirements of each sector.
Construction sites demand equipment that can withstand heavy loads, rough terrain, and long working hours. The TRPT-8 to TRPT-14 models are optimized for this sector:
• Heavy-Duty Load Capacity: The TRPT-14 can carry up to 550 kg—enough for 2 operators plus tools (e.g., welding machines, concrete mixers) needed for facade installation or steel structure assembly.
• Diesel Power: Diesel-powered models (TRPT-10 to TRPT-14) feature a 4-cylinder Yuchai engine (58 hp) that delivers consistent performance even in high-altitude areas (up to 3,000 meters above sea level), where electric models may struggle with battery efficiency.
• Dust and Water Resistance: The electrical system is rated IP65, protecting it from dust and water splashes—critical for outdoor construction in rainy or dusty environments.
A construction company in Dubai used 5 TRPT-12 lifts to install glass panels on a 12-meter-high commercial building. The lifts’ off-road chassis navigated the site’s unpaved ground, while the heavy-duty load capacity allowed workers to carry 2 glass panels (each weighing 150 kg) per trip. The project was completed 2 weeks ahead of schedule, and the company reported a 25% reduction in equipment-related delays.
Warehouses and distribution centers rely on high-altitude equipment for shelf restocking, inventory checks, and equipment maintenance. The TRPT-4 to TRPT-8 models are ideal for these tasks:
• Electric Power: Electric models (TRPT-4 to TRPT-8) produce zero emissions and operate at just 65 decibels (equivalent to a normal conversation)—perfect for indoor warehouses where air quality and noise levels are regulated.
• Battery Life: The TRPT-8’s 48V/150Ah lithium-ion battery provides 8 hours of continuous operation on a single charge (enough for a full work shift) and can be recharged to 80% capacity in 2 hours using a fast charger.
• Platform Accessibility: The platform features a foldable ramp (with a maximum angle of 15 degrees) that allows operators to roll heavy items (e.g., boxes, small pallets) onto the platform using a hand truck—eliminating the need for manual lifting.
Amazon’s fulfillment center in Frankfurt, Germany, replaced its old scissor lifts with 20 TRPT-6 electric models. The narrow chassis allowed the lifts to move between 1.2-meter-wide shelf aisles, while the low noise level prevented disruptions to nearby workers. The center reported a 30% increase in shelf restocking efficiency and a 50% reduction in worker fatigue (due to the ramp feature).
Municipal departments need equipment that can respond quickly to emergencies (e.g., broken street lamps, fallen power lines) and handle routine tasks (e.g., tree trimming, sign installation). The TRPT-6 to TRPT-14 models meet these needs with:
• Vehicle-Mounted Option: The TRPT-10 and TRPT-14 can be mounted on a standard 5-ton truck, allowing for rapid deployment to job sites. The lift can be set up and ready to use in 5 minutes—critical for emergency repairs.
• Extended Platform: An optional 0.8-meter platform extension (available for all models) provides extra space for operators to work on wide objects like street lamps or billboards.
• Low Ground Pressure: The TRPT-6’s tires have a ground pressure of just 0.3 MPa, preventing damage to paved roads or sidewalks during operation.
The municipal government of Seoul, South Korea, added 10 TRPT-14 vehicle-mounted lifts to its fleet for street lamp maintenance. Previously, the government used cranes for this task, which took 30 minutes to set up and required road closures. With the TRPT-14, the team can set up the lift in 5 minutes, complete the repair in 10 minutes, and keep the road partially open—reducing traffic congestion and improving public satisfaction.
The TRPT series’ success is rooted in TIANLU’s commitment to quality, innovation, and customer service. Founded in 2009, TIANLU has grown from a small workshop to a global enterprise with 3 production bases (in China, Thailand, and Mexico) and a distribution network covering 60 countries.
TIANLU invests 5% of its annual revenue in research and development—well above the industry average of 2-3%. The company’s R&D center (located in Changzhou, China) employs 120 engineers, including 20 with PhDs in mechanical engineering and mechatronics. This team has filed over 150 patents, including 30 for scissor lift technologies (e.g., the dual anti-fall locking system, the sealed hydraulic system).
In 2023, TIANLU partnered with the University of Science and Technology Beijing to develop a new lightweight scissor arm material (carbon fiber-reinforced polymer) that reduces the TRPT series’ weight by 20% while maintaining strength. This innovation will be integrated into future TRPT models, further improving fuel efficiency and maneuverability.
Every TRPT lift undergoes a 120-point quality inspection before leaving the factory, including:
• Structural Load Testing: The scissor arms are tested with 150% of the maximum load for 24 hours to ensure no deformation.
• Safety System Testing: Emergency stop buttons, anti-fall locks, and tilt alarms are activated 100 times in a row to verify reliability.
• Environmental Testing: Lifts are exposed to extreme temperatures (-30°C to 80°C) and humidity (95%) for 48 hours to test component durability.
TIANLU’s quality control process has earned the company ISO 9001 (quality management), ISO 14001 (environmental management), and ISO 45001 (occupational health and safety) certifications. In 2024, the company received the "China Top 10 Construction Machinery Brands" award for the third consecutive year.
TIANLU understands that after-sales service is critical for industrial equipment. The company offers:
• Warranty: A 2-year/2,000-hour warranty on all TRPT models, covering parts and labor.
• Service Network: 50 service centers worldwide (including 12 in Europe, 8 in North America, and 15 in Asia) with trained technicians available 24/7.
• Spare Parts: A global spare parts warehouse in Singapore that can deliver 90% of parts within 48 hours to any location.
A mining company in Australia reported that when one of its TRPT-12 lifts experienced a hydraulic leak, TIANLU’s local service team arrived within 24 hours and replaced the faulty part—minimizing downtime to just 6 hours. The company noted that this level of service was "far superior" to that of its previous equipment supplier.
