An off-road scissor aerial work platform is a type of special equipment used for high-altitude operations. It is improved and upgraded on the basis of the traditional scissor lift, with a focus on enhancing the ability to adapt to complex terrains. Its core structure still includes the scissor-type lifting mechanism, the work platform, the power system, the control system, and the traveling system, but each part has been optimized for off-road performance.

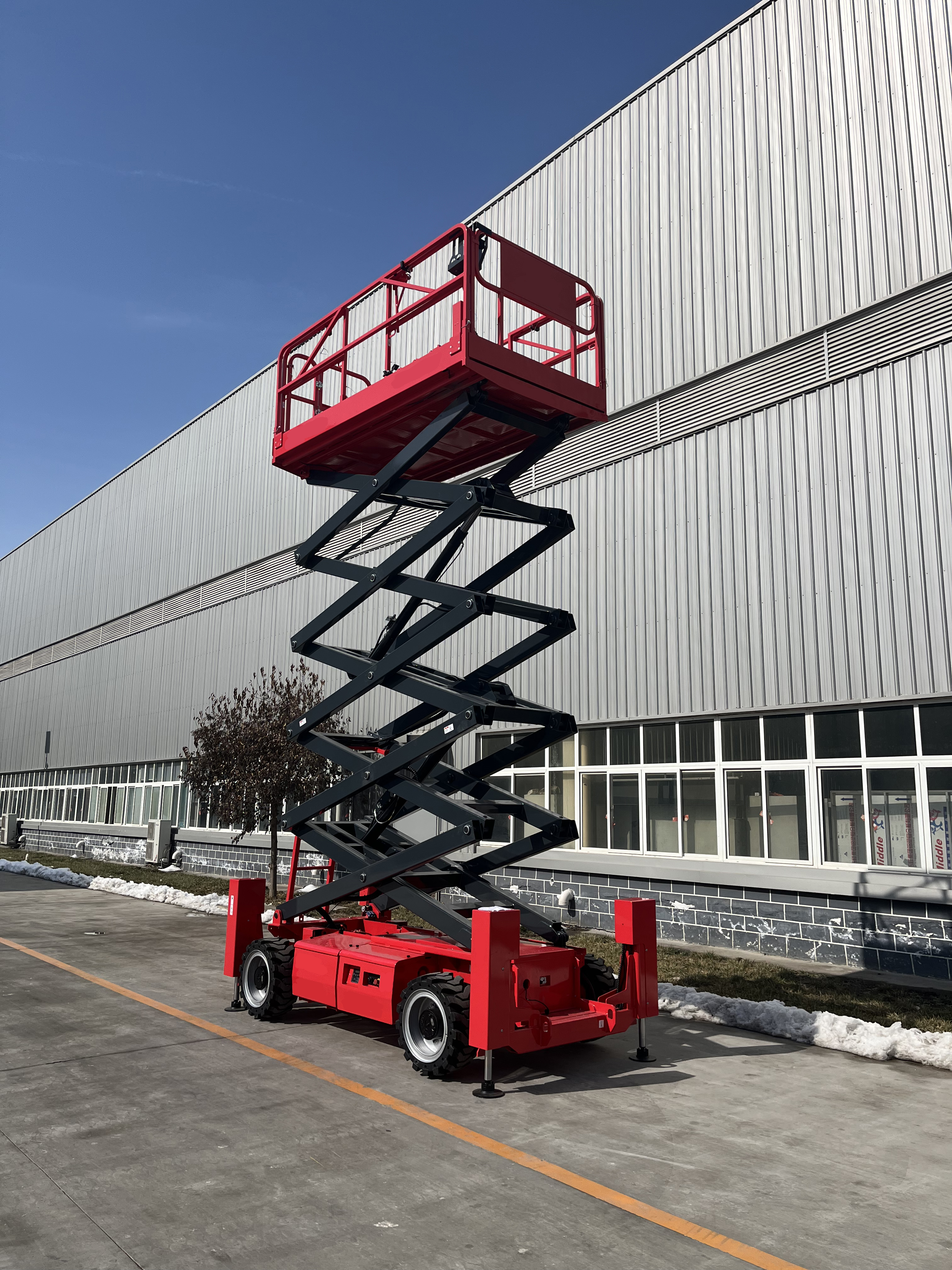

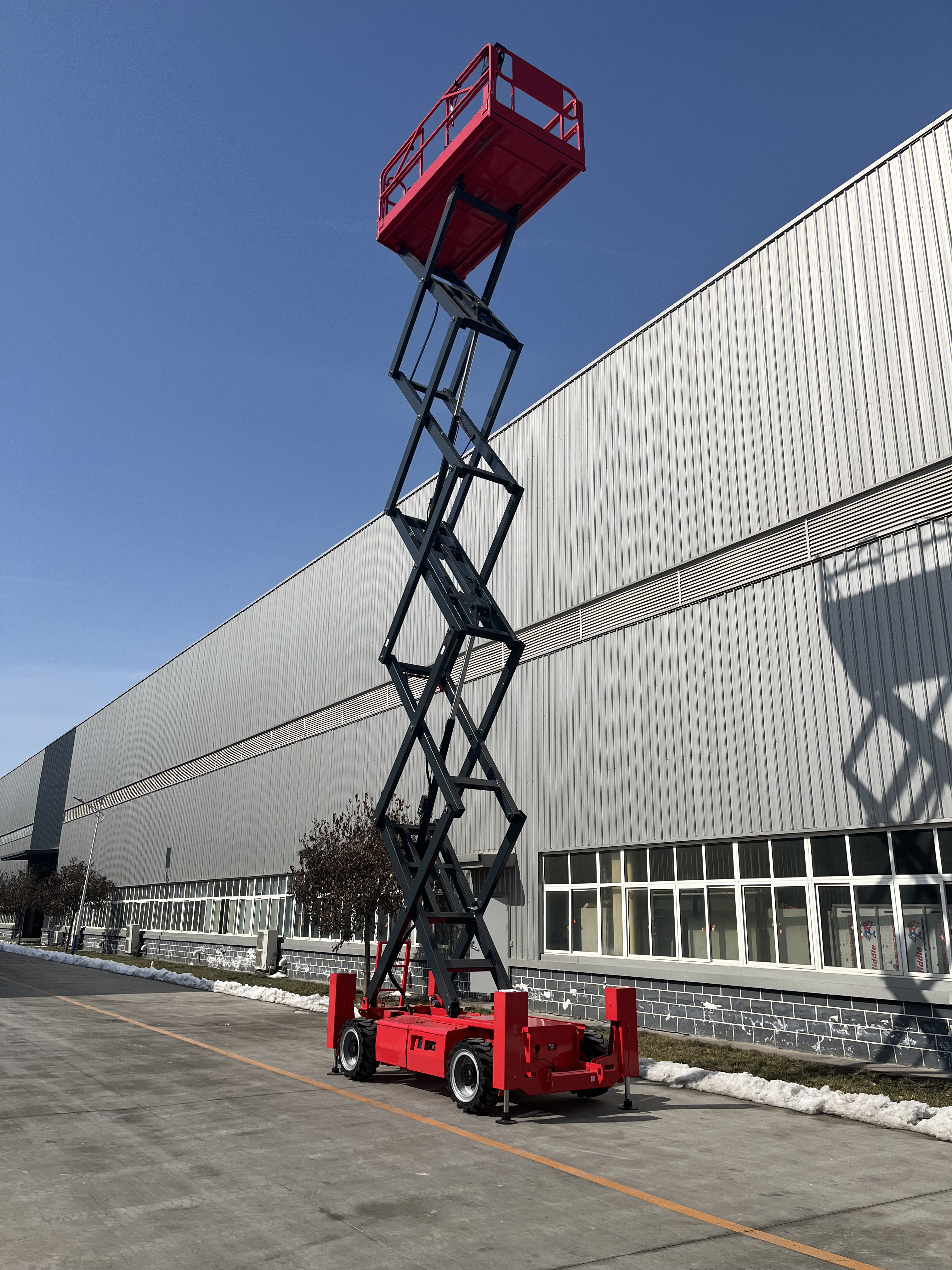

The scissor-type lifting mechanism is the core component that realizes the lifting function. It is composed of multiple sets of scissor arms connected by hinges. Through the expansion and contraction of the hydraulic cylinder, the scissor arms are driven to lift or lower, thereby driving the work platform to reach the required height. For off-road models, the scissor arms are usually made of high-strength steel, which has higher load-bearing capacity and durability to cope with the vibration and impact during off-road driving.
The work platform is the area where operators stand and work. It is generally designed as a rectangular structure with a certain area to ensure that operators can move freely and place necessary tools. The guardrail around the platform is an important safety protection device, which can prevent operators from falling. In off-road models, the work platform is also equipped with anti-slip pads to avoid slipping when the platform is tilted slightly or the ground is wet.
The power system of off-road scissor aerial work platforms usually has two options: diesel engine and electric motor. Diesel engine models have strong power and long continuous working time, which are suitable for outdoor operations that require long-distance driving and heavy-load work, such as mining areas and road construction. Electric motor models are more environmentally friendly, with low noise and no exhaust emissions, making them suitable for indoor operations or areas with high environmental requirements, such as greenhouses, workshops, and scenic spots.
The control system is the "brain" of the platform, which controls the lifting, lowering, and traveling of the platform. Modern off-road scissor lifts are equipped with intelligent control systems, which can realize automatic leveling, overload protection, and fault self-diagnosis functions. The control panel is usually installed on the work platform and the ground, so that operators can control the platform on the platform or on the ground, which is more flexible and convenient.
The traveling system is the key part that distinguishes off-road scissor lifts from traditional ones. Traditional scissor lifts usually use solid tires and have a simple traveling mechanism, which can only move on flat ground. Off-road models, on the other hand, are equipped with off-road tires with deep patterns, which have strong grip and can adapt to various complex road surfaces such as mud, sand, and gravel. At the same time, the traveling mechanism adopts a four-wheel drive system, which can distribute power to all four wheels, improving the passing performance of the platform. Some high-end models also have a differential lock function. When one or more wheels slip, the differential lock can lock the differential, so that the power is transmitted to the wheels with good grip, ensuring that the platform can continue to move forward.
According to different classification standards, off-road scissor aerial work platforms can be divided into various types.
From the perspective of power source, they can be divided into diesel-powered off-road scissor lifts and electric-powered off-road scissor lifts. As mentioned earlier, diesel-powered models are suitable for outdoor heavy-duty operations, while electric-powered models are more suitable for indoor or environmentally friendly operations.
According to the maximum lifting height, they can be divided into low-altitude off-road scissor lifts (with a maximum lifting height of less than 10 meters), medium-altitude off-road scissor lifts (with a maximum lifting height of 10-20 meters), and high-altitude off-road scissor lifts (with a maximum lifting height of more than 20 meters). Low-altitude models are usually used for maintenance of street lamps, greening pruning, and indoor decoration; medium-altitude models are suitable for construction of small buildings, maintenance of power lines, and installation of billboards; high-altitude models are mainly used for large-scale construction projects, such as the construction of bridges and high-rise buildings, and the maintenance of large-scale equipment.
In terms of load capacity, they can be divided into light-duty off-road scissor lifts (with a load capacity of less than 300 kg), medium-duty off-road scissor lifts (with a load capacity of 300-500 kg), and heavy-duty off-road scissor lifts (with a load capacity of more than 500 kg). Light-duty models are suitable for operations that require only one or two operators and a small amount of tools; medium-duty models can carry multiple operators and more tools; heavy-duty models are mainly used for lifting heavy equipment or materials, such as the installation of air conditioners and the maintenance of large-scale mechanical equipment.
The most prominent advantage of off-road scissor aerial work platforms is their strong off-road performance, which allows them to move freely in various complex terrains and break through the limitations of traditional platforms.
First of all, the off-road tires are a major "weapon" for adapting to complex terrains. These tires are made of high-quality rubber materials with strong wear resistance and puncture resistance. The deep and wide tire patterns can increase the friction between the tire and the ground, so that the platform has good grip on mud, sand, and gravel roads. Even in rainy or snowy weather, the tire patterns can drain water and snow in time to prevent slipping. For example, in a muddy construction site after rain, the off-road tires of the platform can sink into the mud to a certain extent, but the deep patterns can still grab the solid soil below, driving the platform forward. In contrast, the traditional solid tires will slip continuously in the mud and cannot move.
Secondly, the four-wheel drive system provides strong power support for the platform. The four-wheel drive system can distribute the power of the engine or motor to all four wheels, so that each wheel has driving force. This is particularly important when the platform is driving on uneven roads or slopes. When the platform is climbing a slope, the four-wheel drive system can ensure that all wheels are exerting force, avoiding the situation where the front or rear wheels slip due to insufficient power. Some models also have a variable speed function, which can adjust the speed according to the terrain. For example, when driving on a flat road, the platform can run at a higher speed to save time; when climbing a slope or driving on a rough road, the platform can reduce the speed to increase the torque and ensure stable driving.
In addition, the high ground clearance is another important factor for the off-road performance of the platform. The ground clearance refers to the distance between the bottom of the platform and the ground. Off-road scissor lifts usually have a ground clearance of more than 200 mm, which is much higher than that of traditional scissor lifts (usually less than 100 mm). This high ground clearance can prevent the bottom of the platform from being scratched by stones, tree stumps, or other obstacles on the road, ensuring the safety of the platform. For example, when driving on a road with many stones, the high ground clearance allows the platform to pass over the stones smoothly without being stuck.
Safety is the top priority in high-altitude operations, and off-road scissor aerial work platforms have taken a series of measures to ensure the safety of operators.
Automatic leveling function is one of the important safety protection measures. In complex terrains, the ground is often uneven, and if the platform is not level, it may tilt during operation, leading to safety accidents. The automatic leveling function of the off-road scissor lift can automatically detect the levelness of the ground through the sensor. When the platform is placed on an uneven ground, the hydraulic system will adjust the height of the four supporting legs to make the work platform keep level. Some advanced models can even realize the automatic leveling within a certain slope range (usually ±5°), which greatly improves the safety of the platform in complex terrains.
Overload protection function is also essential. The load capacity of the platform is a fixed value, and if the load exceeds the limit, it may cause the scissor arms to break, the hydraulic system to fail, or even the platform to tip over. The overload protection system of the off-road scissor lift is composed of a load sensor and a control system. The load sensor can detect the weight on the work platform in real time. When the weight exceeds the rated load, the control system will immediately cut off the lifting circuit, prevent the platform from continuing to lift, and issue an alarm to remind the operator to reduce the load. This function can effectively avoid safety accidents caused by overload.
Emergency descent function is a necessary safety measure for dealing with unexpected situations. During the operation of the platform, if the power system fails or the hydraulic system has a problem, the platform may be stuck at a high altitude, which is very dangerous for the operators. The emergency descent function of the off-road scissor lift can realize the descent of the platform through a manual pump or a backup power supply. When an emergency occurs, the operator can activate the emergency descent device, and the platform will slowly descend to the ground, ensuring the safety of the operators.
In addition, the platform is also equipped with other safety devices, such as emergency stop buttons, guardrail interlocks, and anti-collision devices. The emergency stop button is installed on the work platform and the ground control panel. When an emergency occurs, the operator can press the emergency stop button to stop all operations of the platform immediately. The guardrail interlock device can ensure that the platform cannot be lifted when the guardrail is not closed, preventing operators from falling due to the open guardrail. The anti-collision device is installed around the work platform, which can detect obstacles around the platform. When the platform is about to collide with an obstacle, the device will issue an alarm and slow down or stop the platform to avoid collision accidents.
Off-road scissor aerial work platforms not only have strong off-road performance and high safety performance but also can greatly improve work efficiency, helping engineering teams complete projects on time or ahead of schedule.
First of all, the fast lifting speed saves a lot of time for high-altitude operations. The lifting speed of off-road scissor lifts is usually 0.8-1.5 m/s, which is faster than that of traditional scissor lifts (usually 0.5-1.0 m/s). For example, if the maximum lifting height of the platform is 15 meters, the off-road model can reach the maximum height in 10-18.75 seconds, while the traditional model takes 15-30 seconds. In the case of multiple high-altitude operations a day, the time saved by the fast lifting speed is very considerable.
Secondly, the large work platform area provides a comfortable working space for operators. The work platform area of off-road scissor lifts is usually 3-8 square meters, which is larger than that of traditional scissor lifts (usually 2-5 square meters). The large platform area allows multiple operators to work at the same time, and also can place more tools and materials. For example, in the installation of large billboards, two operators can stand on the platform at the same time, one is responsible for installing the billboard, and the other is responsible for passing tools and materials, which greatly improves the work efficiency.
In addition, the flexible movement performance of the platform also contributes to improving work efficiency. The off-road scissor lift can move freely in the work site, and can adjust the position of the platform at any time according to the needs of the work. For example, in the maintenance of a long section of power lines, the platform can move along the power lines while maintaining the lifting height, so that operators can complete the maintenance work of the entire section without repeatedly lifting and lowering the platform. This not only saves time but also reduces the labor intensity of operators.
The construction industry is one of the main application fields of off-road scissor aerial work platforms. In construction projects such as road construction, bridge construction, and building construction, especially in complex construction sites such as mountainous areas and rural areas, the off-road scissor lift plays an important role.
In road construction, the off-road scissor lift is mainly used for the installation and maintenance of road signs, street lamps, and guardrails. For example, when installing street lamps on a mountain road, the road is steep and the ground is uneven. The traditional scissor lift cannot reach the work site, while the off-road scissor lift can drive to the side of the road smoothly with its strong off-road performance. The automatic leveling function ensures that the work platform is level, and operators can safely install the street lamps. In addition, when maintaining the guardrails on the side of the road, the off-road scissor lift can move along the guardrails, and operators can repair or replace the damaged guardrails without repeatedly moving the platform.
In bridge construction, the off-road scissor lift is used for the construction and maintenance of bridge decks, bridge piers, and bridge guardrails. For example, when constructing the bridge deck, the platform can be lifted to the height of the bridge deck, and operators can lay the asphalt or install the bridge deck pavement. When maintaining the bridge piers, the platform can be moved to the side of the bridge piers, and operators can clean the bridge piers or repair the cracks on the surface of the bridge piers. The high load capacity of the off-road scissor lift allows it to carry heavy construction materials and tools, which is very convenient for bridge construction.
In building construction, especially in the construction of rural houses or small buildings in mountainous areas, the off-road scissor lift is a good helper for high-altitude operations such as roof construction, exterior wall decoration, and window installation. For example, when constructing the roof of a rural house, the ground around the house is usually uneven, and the traditional scissor lift cannot be placed stably. The off-road scissor lift can be placed on the uneven ground, and the automatic leveling function makes the work platform level. Operators can stand on the platform to lay the roof tiles or install the roof waterproof layer. In addition, when decorating the exterior wall of the building, the platform can be lifted to the required height, and operators can paint the exterior wall or install the exterior wall tiles. The flexible movement performance of the platform allows it to adjust the position according to the shape of the building, ensuring that every part of the exterior wall can be decorated.
The mining industry is another important application field of off-road scissor aerial work platforms. Mining areas are usually located in remote mountainous areas, with harsh working environments, such as rough roads, large dust, and large temperature differences. The off-road scissor lift can adapt to these harsh environments and provide reliable support for the production and maintenance of mining areas.
In the mining process, the off-road scissor lift is mainly used for the maintenance and repair of mining equipment, such as excavators, loaders, and mine trucks. These mining equipment are large in size and heavy in weight, and their maintenance and repair usually require high-altitude operations. For example, when maintaining the engine of a mine truck, the platform can be lifted to the height of the engine, and operators can disassemble and repair the engine parts. The high load capacity of the off-road scissor lift allows it to carry the heavy engine parts and repair tools, which is very convenient for maintenance work.
In addition, the off-road scissor lift is also used for the construction and maintenance of mining infrastructure, such as mine roadways, mine ventilation systems, and mine power supply systems. For example, when constructing a mine roadway, the platform can be lifted to the top of the roadway, and operators can install the support structure of the roadway or lay the cable. When maintaining the mine ventilation system, the platform can be moved to the position of the ventilation fan, and operators can clean the fan blades or replace the fan motor. The strong off-road performance of the platform allows it to move in the narrow and rough mine roadways, ensuring the smooth progress of the construction and maintenance work.
With the development of agricultural modernization, the application of off-road scissor aerial work platforms in the agricultural industry is becoming more and more widespread. It is mainly used for the construction and maintenance of agricultural facilitie.
