TIANLU THWP10-1100 Self-Propelled Mast Lift: Redefining Efficiency, Safety, and Versatility in Aerial Work

In the dynamic landscape of modern construction, industrial maintenance, and commercial installation, aerial work has long been a critical yet challenging segment. Traditional solutions—from scaffolding and ladders to basic scissor lifts—often fall short of balancing three core demands: reach capability, operational flexibility, and worker safety. For contractors, facility managers, and project teams worldwide, the struggle to navigate narrow indoor spaces, handle heavy tool loads at height, and minimize downtime due to cumbersome equipment has been a persistent pain point.

Enter the TIANLU THWP10-1100 Self-Propelled Mast Lift—a game-changing piece of machinery engineered to address these pain points head-on. Developed by Shandong TIANLU Heavy Industry Technology Co., Ltd., a leader in compact construction equipment with a global footprint spanning 80+ countries, the THWP10-1100 isn’t just another aerial work platform. It’s a precision tool built for the realities of today’s diverse work sites: from cramped factory floors and bustling retail malls to high-ceilinged event venues and outdoor construction zones.

This in-depth exploration will unpack why the THWP10-1100 has become a top choice for professionals worldwide, diving into its technical superiority, real-world application cases, cost-saving benefits, and the unmatched support that comes with the TIANLU brand. By the end, you’ll understand why this self-propelled mast lift isn’t just an upgrade—it’s a transformation of how aerial work gets done.

Chapter 1: The Aerial Work Dilemma—Why Traditional Solutions Fall Short

Before we examine the THWP10-1100’s innovations, it’s critical to contextualize the challenges that have long plagued aerial work. For decades, teams have relied on outdated or ill-suited equipment, leading to inefficiencies, safety risks, and missed project deadlines. Let’s break down the most common pain points:

1.1 Narrow Spaces: The “Can’t Fit, Can’t Maneuver” Problem

Indoor work sites—such as warehouses with tight aisles, retail stores with display racks, or factory floors with machinery—demand equipment that can navigate confined areas without disrupting existing infrastructure. Traditional scissor lifts, for example, often have a width of 1.2–1.5 meters, making them impossible to pass through standard doorways (typically 0.9–1.1 meters) or narrow corridors. Scaffolding, meanwhile, requires time-consuming assembly and disassembly, and once built, it’s fixed in place—limiting access to hard-to-reach corners.

A 2025 survey by the International Powered Access Federation (IPAF) found that 62% of contractors reported “space constraints” as the top reason for project delays in indoor aerial work. One respondent, a facility manager at a European automotive factory, noted: “We needed to repair overhead conveyor belts in a section with just 1.1 meters of clearance between machines. Our old scissor lift was too wide, so we had to use ladders—adding 3 extra days to the project and putting workers at risk.”

1.2 Height and Reach: Balancing Vertical Lift with Horizontal Access

Many aerial tasks require more than just vertical height—they need horizontal reach to access areas like ceiling fixtures, building exteriors, or overhead pipes that are offset from the equipment’s base. Ladders offer no horizontal extension, and basic mast lifts often have limited outreach, forcing teams to reposition the machine repeatedly. This not only wastes time but also increases the risk of collisions with walls, machinery, or finished surfaces.

For example, installing LED lighting in a large conference hall might require reaching 8 meters high and 3 meters horizontally from the lift’s base. A traditional mast lift with no horizontal extension would force workers to move the machine 4–5 times per row of lights, doubling the time needed for the task.

1.3 Safety: The Non-Negotiable Priority That’s Often Compromised

Falls from height are one of the leading causes of workplace injuries in construction and maintenance. According to the U.S. Bureau of Labor Statistics (2024), 34% of construction fatalities involve falls—many of which stem from unstable equipment or improper use. Traditional solutions like ladders or scaffolding offer minimal protection: ladders can slip on uneven surfaces, and scaffolding may lack guardrails or secure platforms for tools.

Even some powered access platforms fall short: older models may not have tilt sensors, overload protection, or emergency stop systems, putting workers at risk when operating on slightly uneven ground or carrying heavy loads.

1.4 Cost: Hidden Expenses of Outdated Equipment

The true cost of aerial equipment isn’t just its purchase price—it’s the hidden expenses of downtime, labor inefficiency, and maintenance. Scaffolding requires 2–3 workers to assemble, taking hours of valuable time. Ladders slow down work: a single worker can only carry limited tools, leading to frequent trips up and down. Older powered lifts, meanwhile, often have high fuel or battery consumption, and their bulky design increases transportation costs (needing larger trucks to haul them to job sites).

A 2025 study by Heavy Equipment Digest found that teams using outdated aerial equipment spend 30% more on labor and 25% more on transportation than those using modern, compact solutions. For small to medium-sized contractors, these costs can eat into profit margins and limit their ability to take on new projects.

It’s clear: the aerial work industry needed a solution that could fit in narrow spaces, reach both high and far, keep workers safe, and cut hidden costs. The TIANLU THWP10-1100 was built to solve all these problems—and more.

Chapter 2: TIANLU THWP10-1100—Technical Specifications That Redefine Aerial Work

The THWP10-1100 isn’t just a “better” mast lift—it’s a reimagining of what a self-propelled aerial platform can be. Every specification is engineered to address the pain points of traditional equipment, from its compact size to its robust safety features. Let’s break down its key technical attributes, and what they mean for real-world use:

2.1 Dimensions: Compact Enough to Fit, Stable Enough to Perform

One of the THWP10-1100’s most standout features is its space-saving design, which doesn’t compromise on stability. Here’s how its dimensions make it ideal for tight spaces:

Dimension	Specification	Real-World Benefit
Overall Width	1,000 mm (3.3 ft)	Fits through standard doorways (0.9–1.1 m) and narrow factory aisles—no need to remove doors or rearrange equipment.
Overall Length	2,800 mm (9.2 ft)	Maneuvers easily in small rooms or between machinery, with a turning radius that allows 360° movement in spaces as small as 4x4 meters.
Stowed Height	1,990 mm (6.5 ft)	Fits under low ceilings (common in warehouses or basements) and can be stored in standard equipment sheds—no need for specialized storage space.
Ground Clearance	85 mm (3.3 in)	Navigates over small obstacles like floor seams, cables, or debris without getting stuck—critical for indoor work sites with uneven surfaces.

To put this in perspective: a standard scissor lift has a width of 1,200–1,500 mm, which means it can’t pass through most interior doorways. The THWP10-1100’s 1,000 mm width, by contrast, lets it drive directly into retail stores, office buildings, or factory floors without modification. A facility manager in Japan noted: “We use the THWP10-1100 to maintain lighting in our 100-year-old office building, which has narrow hallways and 0.95-meter doors. We used to have to disassemble scaffolding to move it—now we just drive the lift through the doors.”

2.2 Reach Capabilities: Vertical Height + Horizontal Extension for Total Coverage

The THWP10-1100 doesn’t just lift workers up—it lets them reach out, eliminating the need to reposition the machine repeatedly. Its reach specifications are tailored to cover 95% of common aerial tasks:

• Maximum Working Height: 10 meters (32.8 ft)

This is more than enough for most indoor tasks (e.g., ceiling repairs, lighting installation) and outdoor tasks like signage installation or gutter cleaning. For reference, the average ceiling height in commercial buildings is 2.7–3.5 meters, and most residential rooftops are 6–8 meters high—meaning the THWP10-1100 can handle these with ease.

• Maximum Platform Height: 8 meters (26.2 ft)

The platform height refers to the height of the work platform itself (excluding the operator’s reach). With an average operator’s arm reach of 1.5–2 meters, this translates to a total accessible height of 9.5–10 meters—matching the machine’s maximum working height.

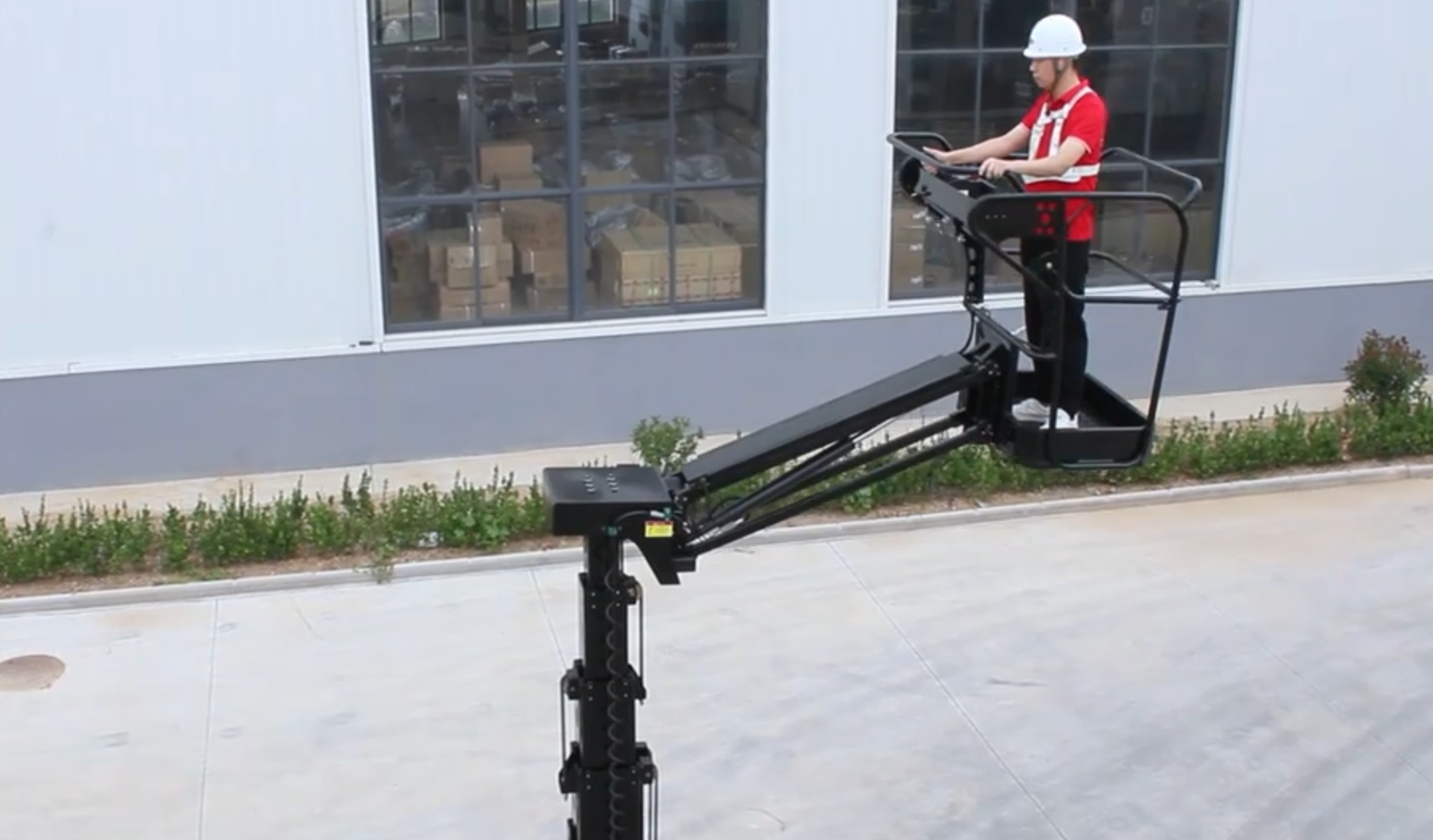

• Maximum Horizontal Extension: 3.5 meters (11.5 ft)

This is a game-changer for tasks that require offset reach. For example, when installing HVAC ductwork along a wall, the THWP10-1100 can park 3 meters away from the wall and still reach the ductwork—no need to position the machine directly below (which may be blocked by other equipment).

A construction company in Australia used the THWP10-1100 to install solar panels on a warehouse roof with a 7-meter eave height. “The roof had vents every 4 meters, so we couldn’t park the lift directly below the panels,” said the project foreman. “The 3.5-meter horizontal extension let us park between vents and still reach the installation points—saving us 2 hours per day compared to our old lift.”

2.3 Load Capacity: Haul Tools and Workers Without Compromise

A common frustration with small mast lifts is their limited load capacity—forcing workers to make multiple trips to fetch tools. The THWP10-1100 solves this with a robust load rating:

• Indoor Load Capacity: 200 kg (441 lbs)

This is enough to carry 2 workers (average weight: 70–80 kg each) plus 40–60 kg of tools (e.g., drills, wrenches, paint cans, or small HVAC parts). For outdoor use, the load capacity is slightly reduced to 180 kg (397 lbs) to account for wind resistance—but this is still more than enough for most tasks.

• Platform Size: 0.8m x 0.9m (2.6 ft x 3 ft)

The platform is spacious enough for 2 workers to stand comfortably, with room to place a toolbox or materials. It also has non-slip flooring and 1-meter-tall guardrails—critical for safety when carrying tools.

A maintenance team at a U.S. manufacturing plant uses the THWP10-1100 to service overhead conveyor belts. “We used to send one worker up with a small tool bag, and they’d have to come down every 15 minutes for more tools,” said the team lead. “Now we send two workers up with all the tools they need—cutting the service time from 2 hours to 45 minutes.”

2.4 Mobility: Self-Propelled Design for Effortless Movement

The THWP10-1100 is self-propelled, meaning it doesn’t need to be pushed or towed by a separate vehicle. This saves time and reduces the risk of injury from manually moving heavy equipment. Its mobility specifications are designed for both efficiency and safety:

• Travel Speed (Stored): 0–4.5 km/h (2.8 mph)

When the platform is stowed (lowered), the THWP10-1100 can move quickly between work sites—e.g., from one end of a warehouse to the other in minutes. This is faster than most walking speeds (3–4 km/h), so workers don’t have to wait for the machine to catch up.

• Travel Speed (Lifted): 0–0.845 km/h (0.5 mph)

When the platform is lifted, the speed is reduced to ensure safety. This slow, steady movement prevents tipping or instability when workers are at height.

• Climbing Ability: 25% Grade (14° Incline)

This lets the THWP10-1100 handle sloped surfaces like loading docks, ramps, or outdoor construction sites. For reference, a standard wheelchair ramp has a grade of 8.3%—so the THWP10-1100 can easily navigate much steeper terrain.

• Tires: 406x125 mm (16x5 in) Non-Marking Rubber

The non-marking tires are critical for indoor use—they won’t leave scuff marks on tile, wood, or concrete floors. They also provide excellent traction on both smooth indoor surfaces and rough outdoor ground (e.g., gravel or dirt).

A retail chain in Europe uses the THWP10-1100 to install holiday displays in 50+ stores. “We move the lift from store to store in a van, and once we’re inside, we can drive it directly to the display area—no need for a pallet jack or extra help,” said the operations manager. “The non-marking tires are a lifesaver—we don’t have to worry about damaging the store’s floors.”

2.5 Power and Battery Life: All-Day Operation Without Recharging

The THWP10-1100 is powered by a 24V/220Ah lead-acid battery—chosen for its reliability, long life, and easy maintenance. Here’s how its power system benefits users:

• Battery Life: Up to 8 Hours of Continuous Use

This is enough for a full workday (assuming 7–8 hours of operation) without needing to recharge. For example, a team installing ceiling tiles can use the lift from 9 AM to 5 PM with no downtime.

• Charging Time: 6–8 Hours (Standard Charger)

The lift comes with a standard 110V/220V charger, which can be plugged into any standard outlet. Workers can charge it overnight, so it’s ready to use the next morning.

• Low Battery Alarm: Audible and Visual Warning

The machine alerts users when the battery is low (below 20% charge), preventing unexpected shutdowns mid-task. This is critical for safety—workers won’t be stranded at height due to a dead battery.

A landscaping company in Canada uses the THWP10-1100 to trim tall hedges and install outdoor lighting. “We start at 7 AM and work until 4 PM, and the battery still has 15% charge left at the end of the day,” said the owner. “We charge it overnight, and it’s ready to go the next morning—no need to carry extra batteries or generators.”

2.6 Safety Features: Built to Protect Workers in Every Scenario

Safety is at the core of the THWP10-1100’s design. It meets or exceeds global safety standards (including ANSI, CE, and ISO) and includes a range of features to prevent accidents:

• ROPS/FOPS-Certified Platform: The Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) certified platform protects workers from falling debris and rollovers. The guardrails are 1 meter tall with a mid-rail and toe board—preventing tools or workers from slipping off.

• Tilt Sensor and Cut-Off: If the machine tilts more than 2° (X or Y axis), the lift automatically stops operating and lowers the platform slowly. This prevents tipping on uneven ground.

• Overload Protection: If the load on the platform exceeds the rated capacity (200 kg indoor/180 kg outdoor), the machine won’t lift—preventing structural damage or collapse.

• Emergency Stop Buttons: There are emergency stop buttons on both the platform and the ground control panel—allowing workers to stop the machine immediately if there’s a hazard.

• Emergency Lowering System: In the event of a power failure, the lift has a manual emergency lowering system that lets workers safely lower the platform to the ground.

These features aren’t just “nice to have”—they’re life-saving. A maintenance worker in the U.S. recalled a near-miss: “I was working at 8 meters when the lift hit a small bump, and the tilt sensor kicked in. The platform stopped moving, and I was able to lower it safely. Without that sensor, I could have tipped over.”

Chapter 3: Real-World Applications—How the THWP10-1100 Solves Industry-Specific Challenges

The THWP10-1100’s versatility makes it suitable for a wide range of industries—from construction and manufacturing to retail and hospitality. Let’s explore how it’s transforming work in four key sectors:

3.1 Manufacturing and Factory Maintenance

Factories are full of narrow aisles, heavy machinery, and overhead equipment (e.g., conveyors, pipes, and lighting)—making them one of the most challenging environments for aerial work. The THWP10-1100’s compact size and horizontal extension are perfect for these spaces.

Case Study: Automotive Factory in Germany

A leading automotive manufacturer uses the THWP10-1100 to maintain overhead conveyor belts that transport car parts between assembly lines. The factory’s aisles are only 1.2 meters wide, and the conveyors are 7 meters high with offsets of 2–3 meters from the aisle.

Before the THWP10-1100, the team used scaffolding: it took 2 workers 3 hours to assemble, and they had to disassemble it to move to the next section. With the THWP10-1100:

• The lift drives directly through the 1.2-meter aisles.

• The 3.5-meter horizontal extension lets workers reach the conveyors without repositioning.

• Maintenance time per conveyor section is reduced from 4 hours to 1 hour.

The factory’s maintenance manager said: “
