| Main Performance |
| Main Speed | r/min | 0-13 |
| Traveling Speed | km/H | 2 |
| Grade ability | KN | 30° |
| Traveling Tracking Force | KN | 8.3 |
| Bucket Digging Force | KN | 7.2 |
| Arm Digging Force | KN | 4.6 |
| Hydraulic System |
| Hydraulic system working pressure | Mpa | 16 |
| Hydraulic Pump |
| Gear Pump |
| Hydraulic pump flow | L/min | 18 |
| Fuel Tank Capacity | L | 26 |
| Hydraulic Tank Capacity | L | 14.5 in Hydraulic tank 21.5 in Hydraulic system |
| Overall Dimensions |
| Overall Length | mm | 2840 |
| Overall Width | mm | 880 |
| Overall Height | mm | 2200 |
| Counterweight Ground clearance | mm | 385 |
| Axle Base | mm | 900 |
| Track Width | mm | 180 |
| Undercarriage Width | mm | 840 |
| Undercarriage ground clearance | mm | 132 |
| Operation Paramters |
| Operation Weight | KG | 1000 |
| Bucket Capacity | m³ | 0.023 |
| Max. Digging Radius | mm | 3065 |
| Max. Digging Depth | mm | 1715 |
| Max. Diiging Height | mm | 2600 |
| Max. Dumping Height | mm | 1830 |
| Tail Swing Radius | mm | 800 |

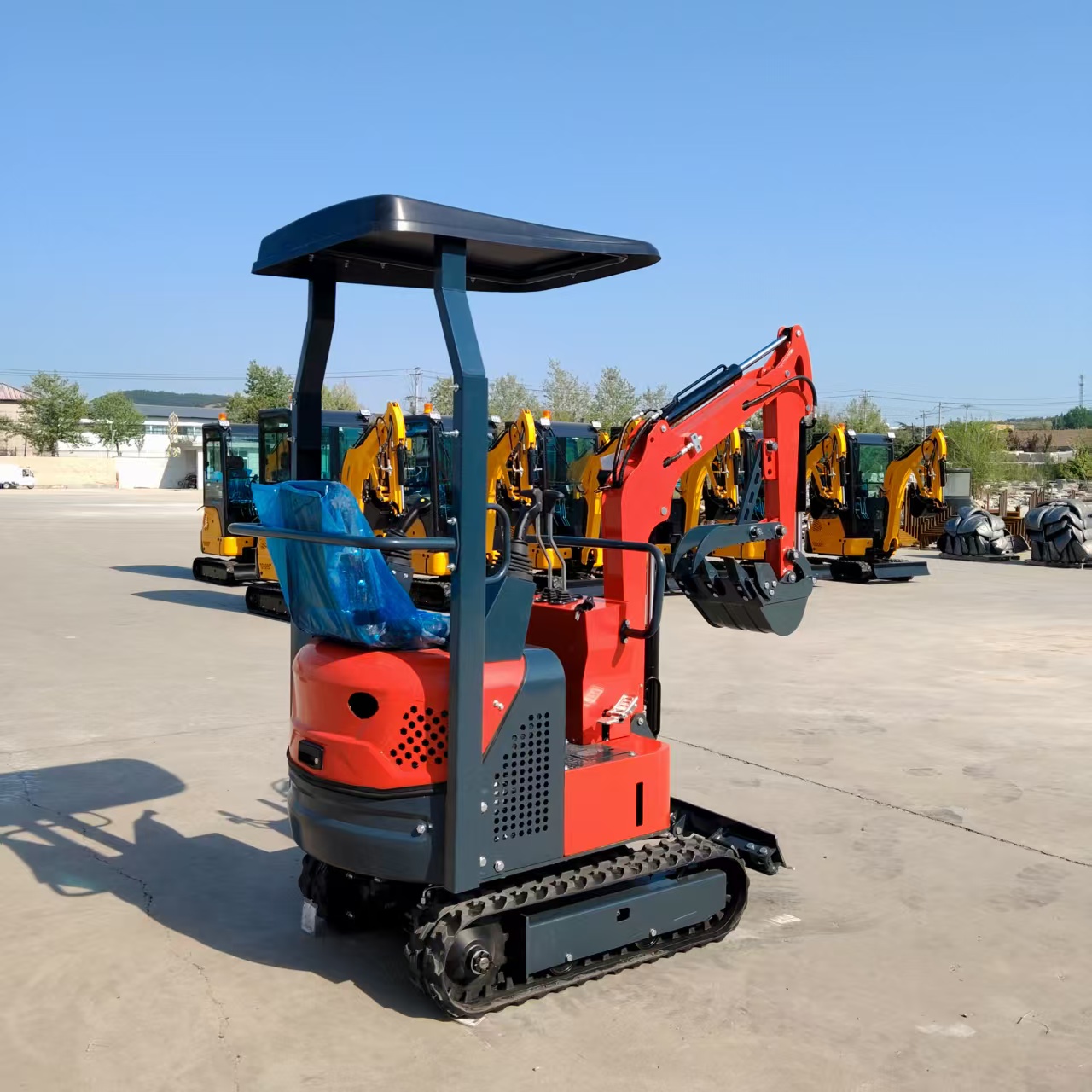

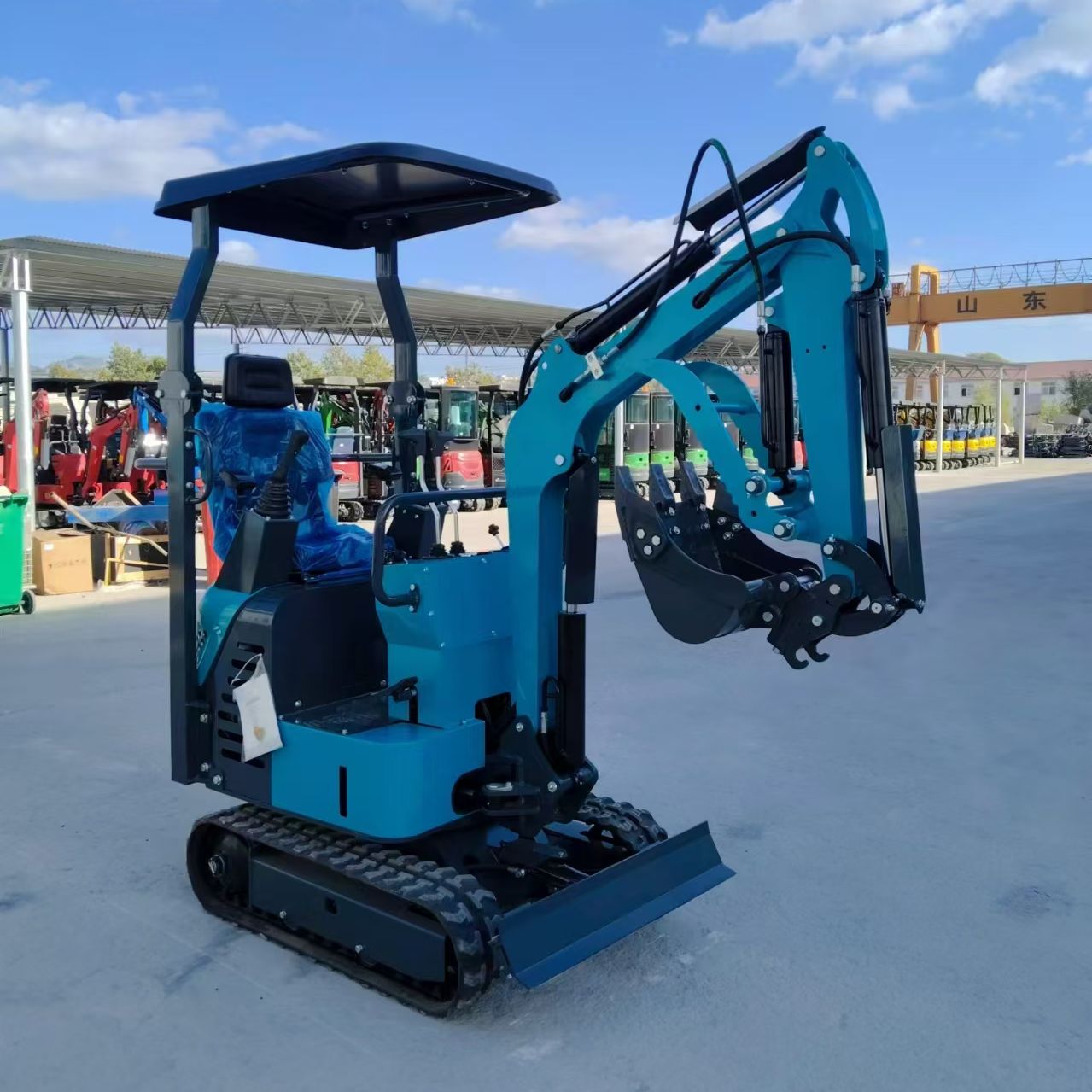

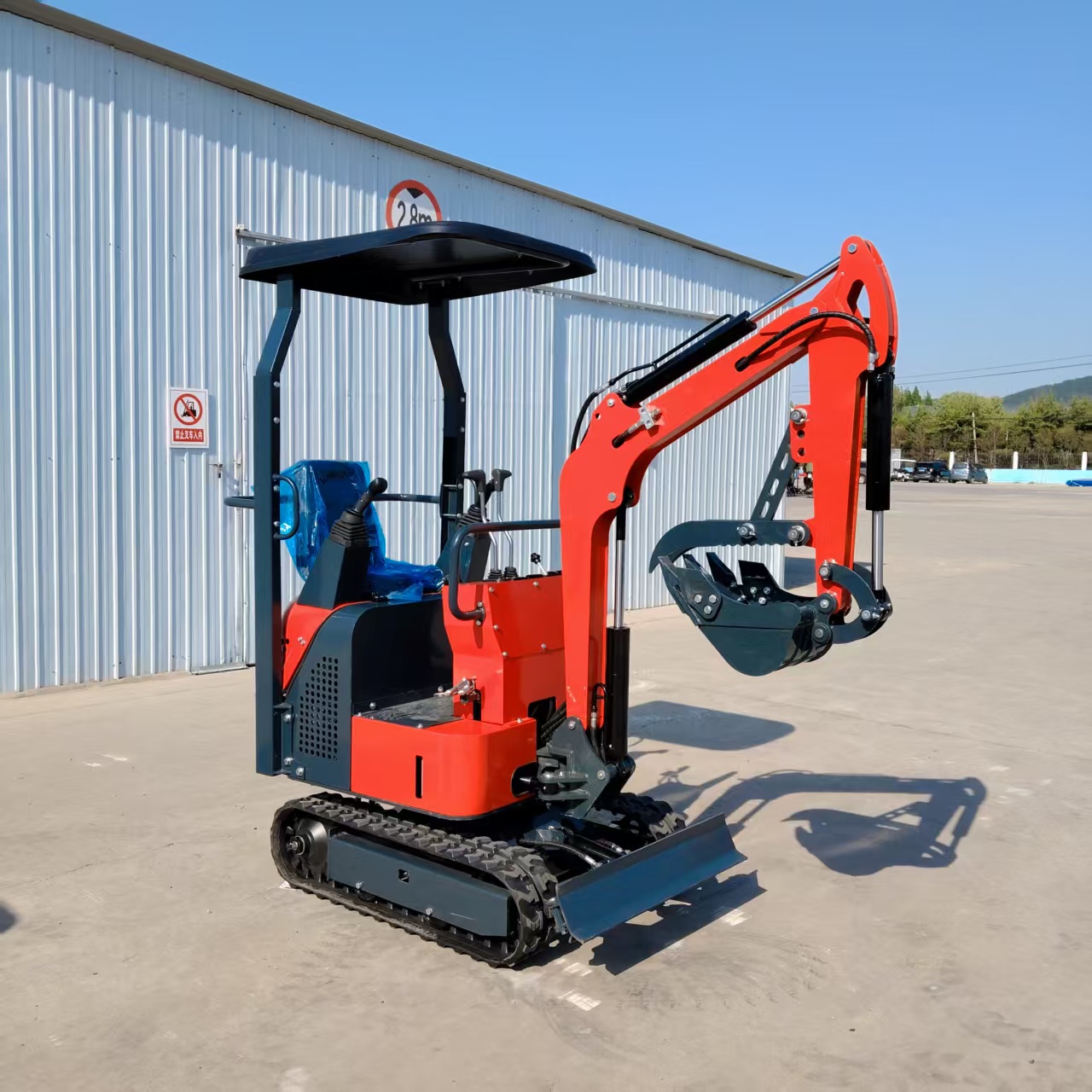

Product Features Operation flexibility Small size: The overall size of the small excavator is small, and the length, width and height of the fuselage are relatively low. This allows it to operate flexibly in narrow spaces. For example, in scenes such as interior decoration, basement construction, and renovation of old communities, large excavators cannot enter at all, but small excavators can easily shuttle through them to complete tasks such as excavation, crushing, and backfilling.
Convenient transfer: Due to its small size and light weight, small excavators are more convenient for transfer transportation. It can be transported using a small trailer, without relying on professional transportation equipment and complex approval processes like large excavators, which greatly shortens the transfer time and improves work efficiency.
Economic Low purchase cost: The price of a small excavator is much lower than that of a large excavator. For some small engineering teams, individual contractors or construction units with limited funds, the financial pressure to purchase a small excavator is relatively small, and they can own their own construction equipment at a lower cost.
Low operating cost: In terms of fuel consumption, the engine power of a small excavator is small and the fuel consumption is relatively low. At the same time, the replacement and maintenance costs of its parts are also low, and the maintenance is relatively simple. It does not require a lot of manpower and material resources for maintenance like large excavators, thereby reducing the overall operating cost.
Wide range of applicable scenarios Municipal engineering: In municipal engineering such as urban road maintenance, pipeline laying, and green belt construction, small excavators can be used for digging trenches, backfilling earthwork, clearing obstacles, etc. It can adapt to the complex construction environment and limited working space in the city to ensure the smooth progress of the project.
Agricultural field: In agricultural production, small excavators can be used for land leveling, farmland water conservancy construction, orchard reclamation, etc. It can help farmers improve agricultural production efficiency and improve agricultural production conditions. For example, in orchards, small excavators can dig drainage ditches and build terraces to create a good environment for the growth of fruit trees.
Garden landscape: In garden landscape projects, small excavators can be used to dig artificial lakes, rockery foundations, planting pits, etc. It can accurately carry out excavation operations, meet the requirements of garden landscape design, and provide strong support for creating beautiful garden landscapes.
Convenience of operation Simple operation: The operation of small excavators is relatively simple, and the control system design is more user-friendly. Novices can get started after short-term training. Compared with the complex operation process and numerous control handles of large excavators, the operation of small excavators is more intuitive and easy to understand, which reduces the training cost and difficulty of operators.
Good vision: The cab of small excavators is usually designed more reasonably, and the operator has a good field of vision. This enables the operator to clearly observe the surrounding working environment, detect potential dangers and obstacles in time, and improve the safety and accuracy of operations.
Easy maintenance Simple structure: The structure of small excavators is relatively simple, with a small number of parts, and troubleshooting and repair are relatively easy. Maintenance personnel can locate the fault point faster, and repair and replace parts, reducing the downtime of the equipment.
Easy maintenance: The daily maintenance work of small excavators is also relatively simple, such as changing oil, filter and other maintenance items, which can be completed by operators in a shorter time. Moreover, due to its small size, the site and tools required for maintenance are relatively small, which is convenient for maintenance at the construction site.
FAQ
Q1:Are you original manufacturer?
A: Yes, we TIANLU are an official leading manufacturer in construction machinery. Our company was founded in 2004. We are quite young yet energetic and have a lot of room for development.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, SGS.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
