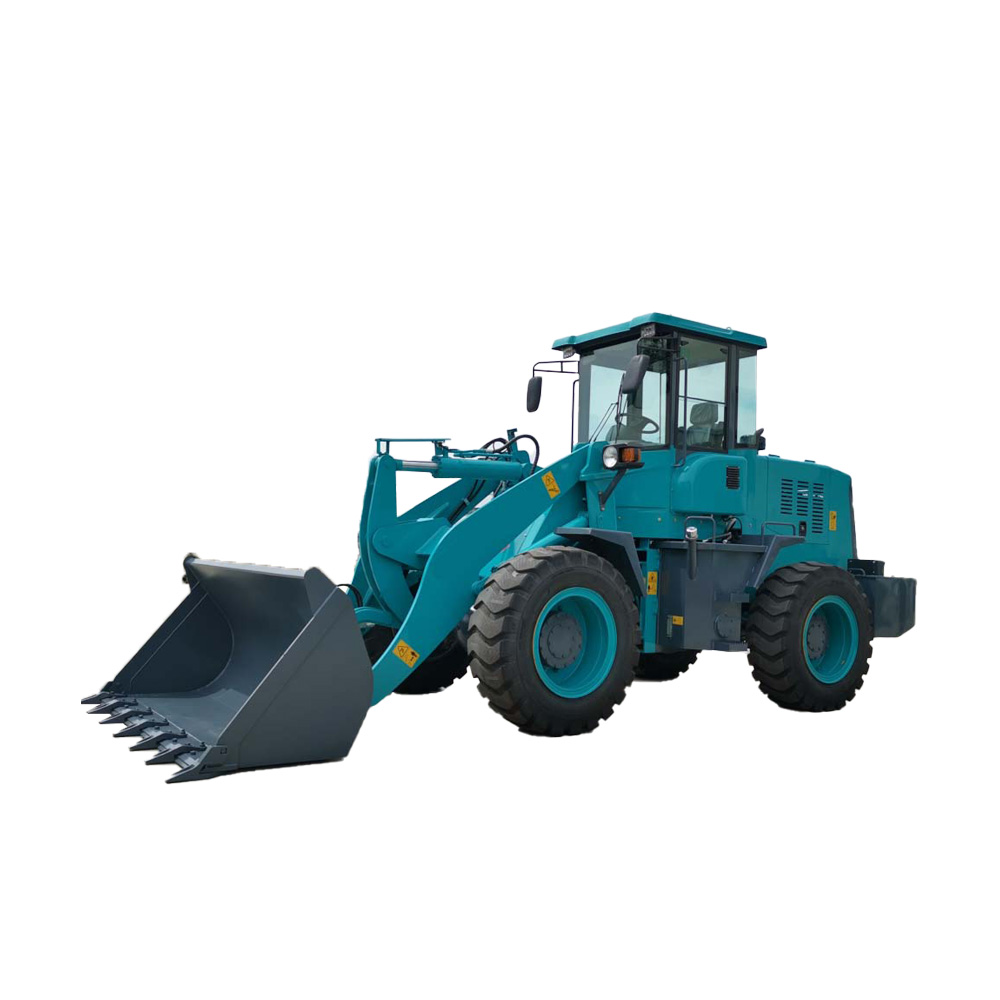

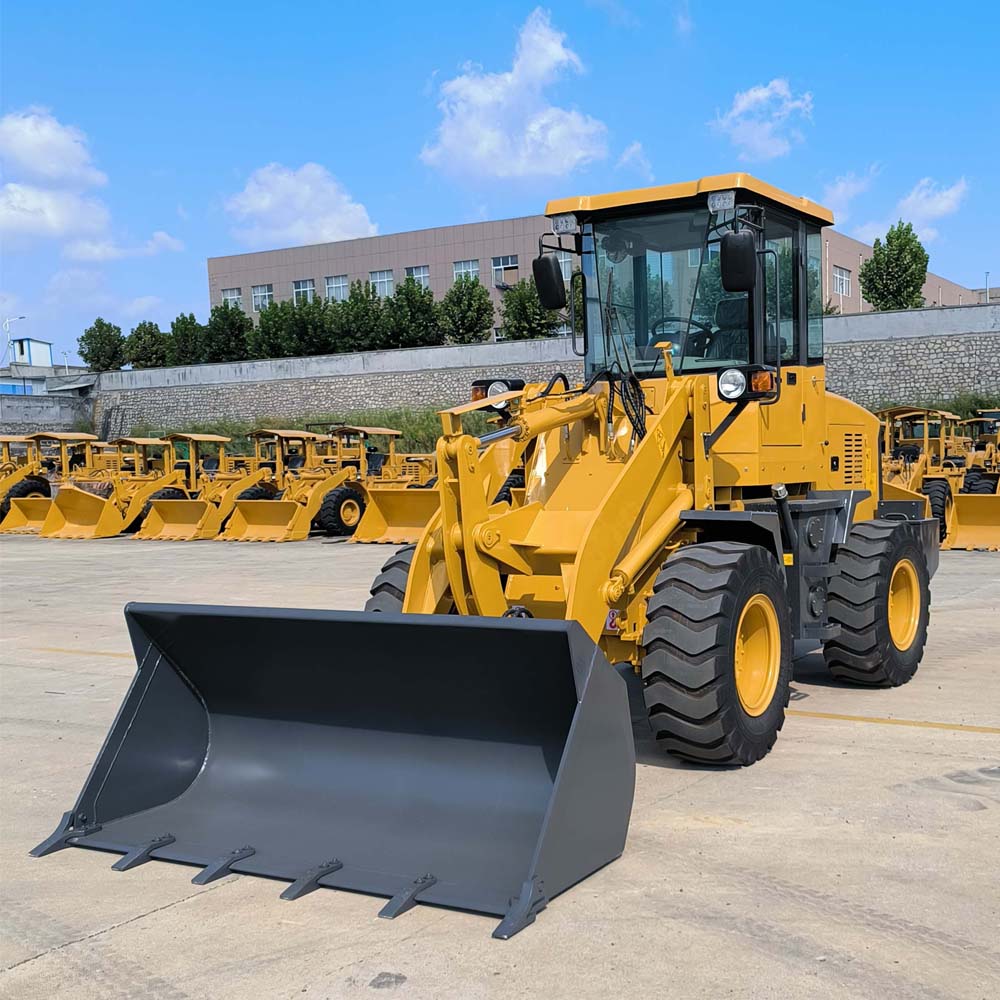

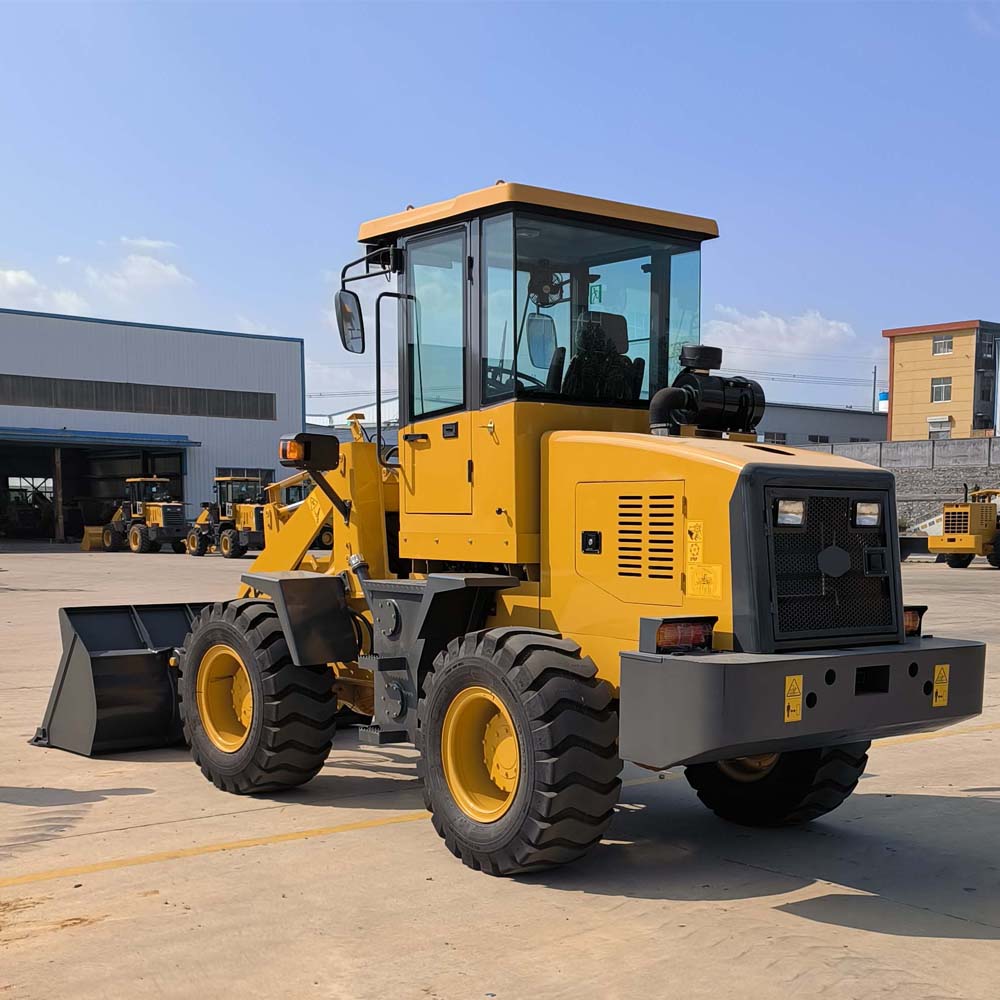

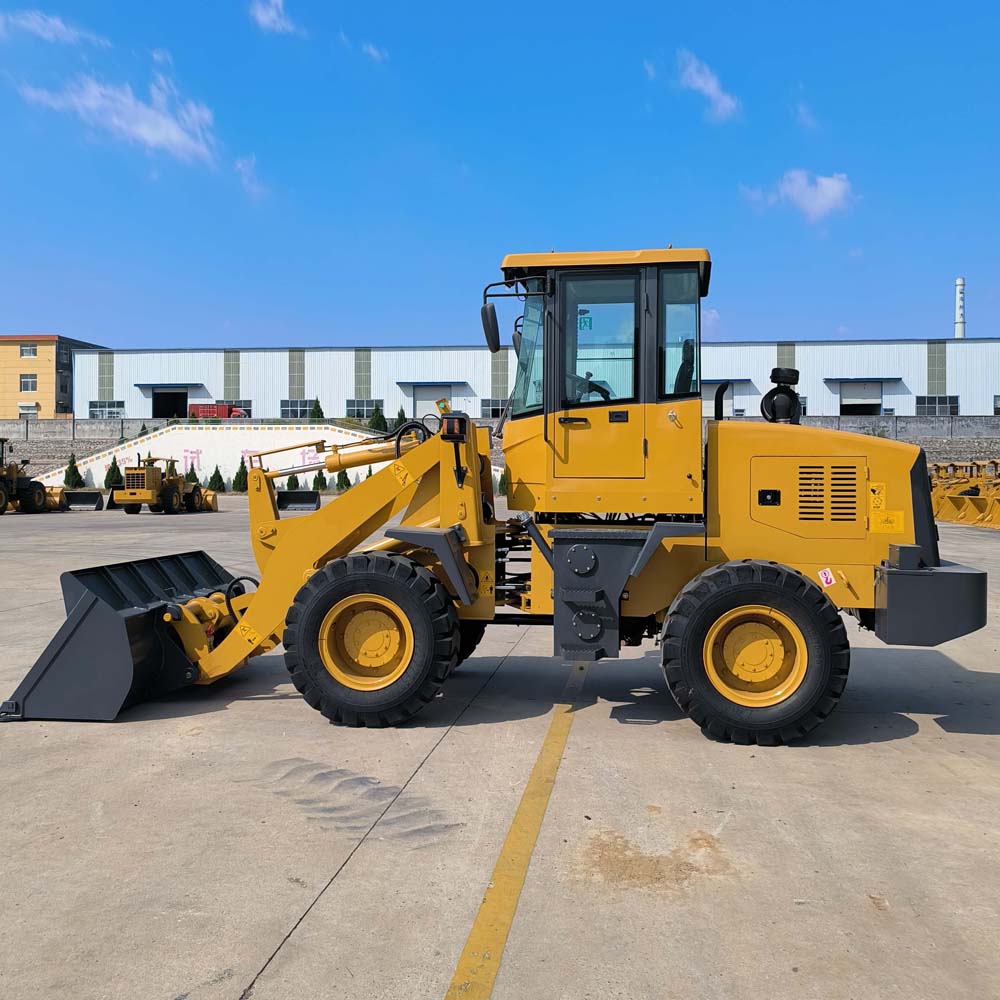

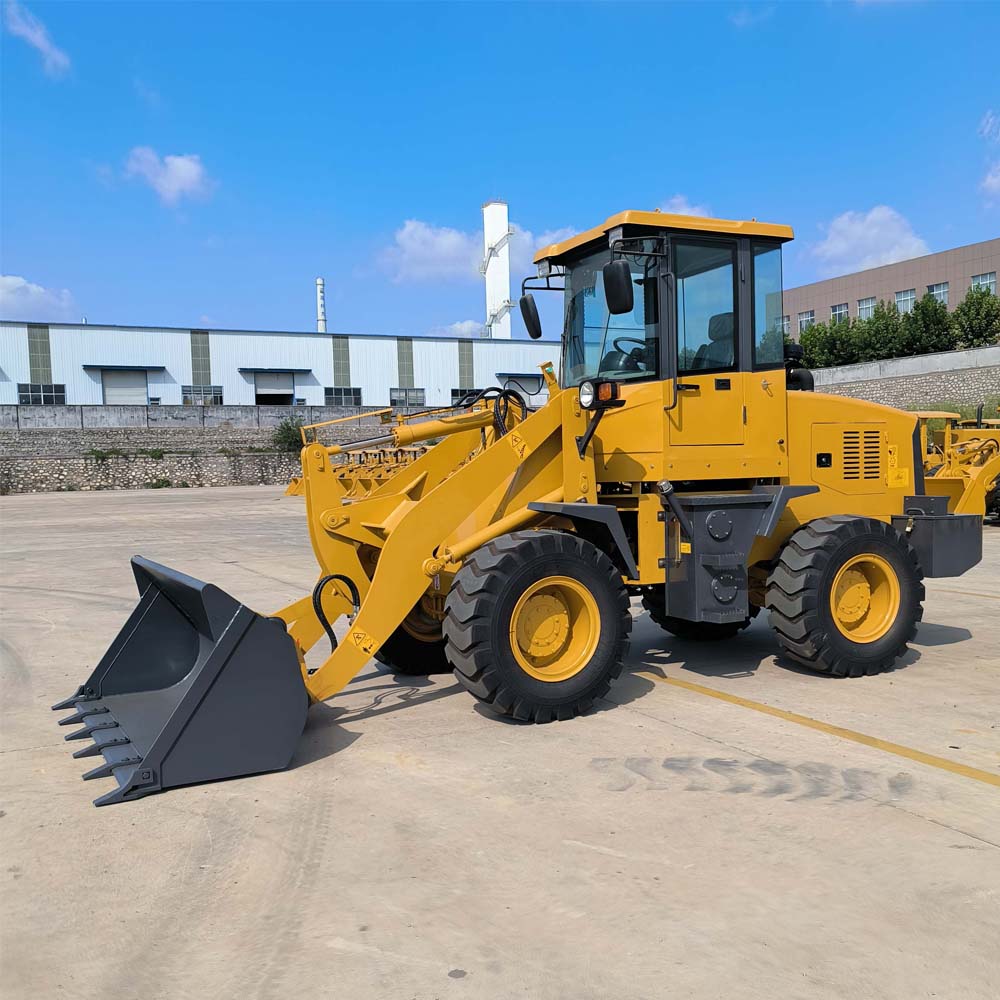

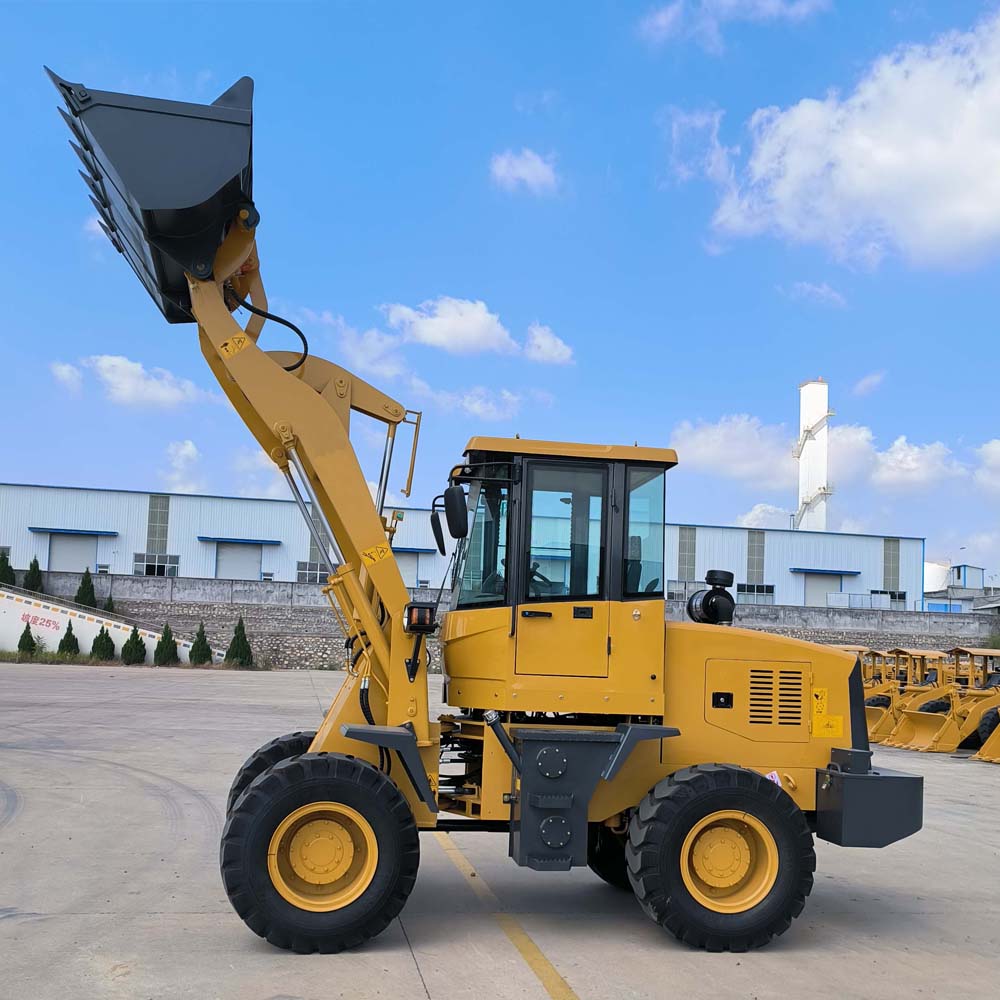

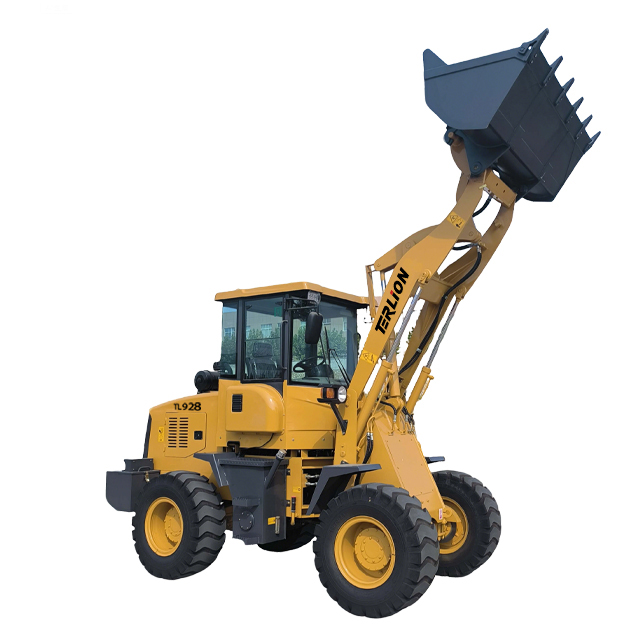

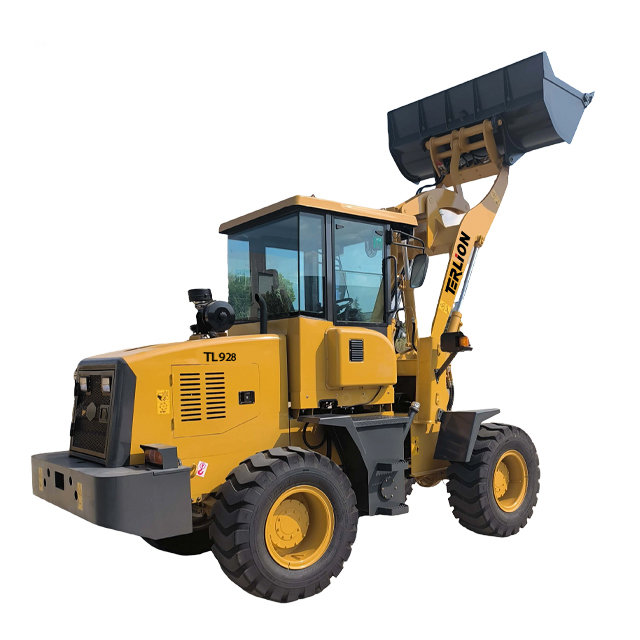

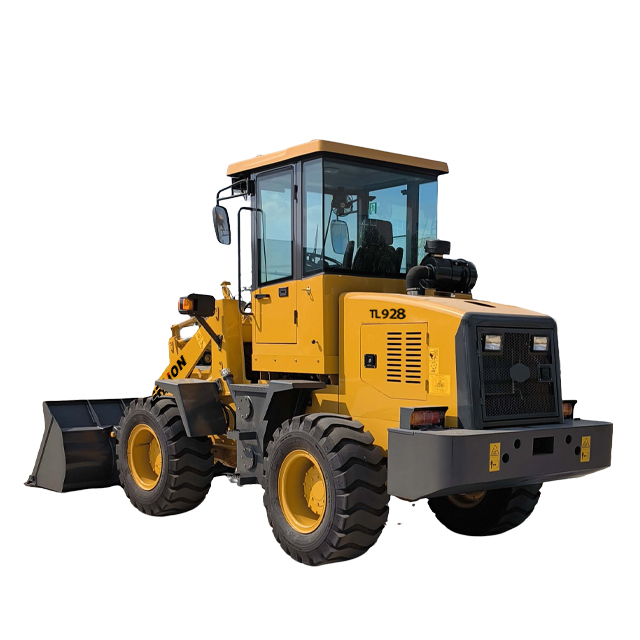

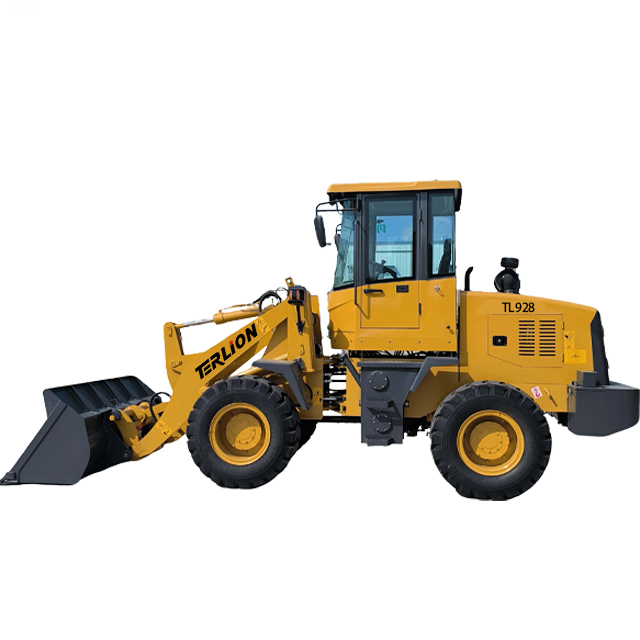

TL928
TERLION★Adopt xichai or Yunnei four cylinder Diesel Engine. ★Hydrodynamic transmission and torque co
| Quantity: | |
|---|---|
Features:
Adopt xichai or Yunnei four cylinder Diesel Engine. |
Hydrodynamic transmission and torque converter, |
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy. |
Single pump, split flow working hydraulic system makes lower consumption and excellent performance. |
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage |
Load sensing fully hydraulic steering system, easy and flexible operation |
Air over hydraulic brake system; Caliper disc brakes |

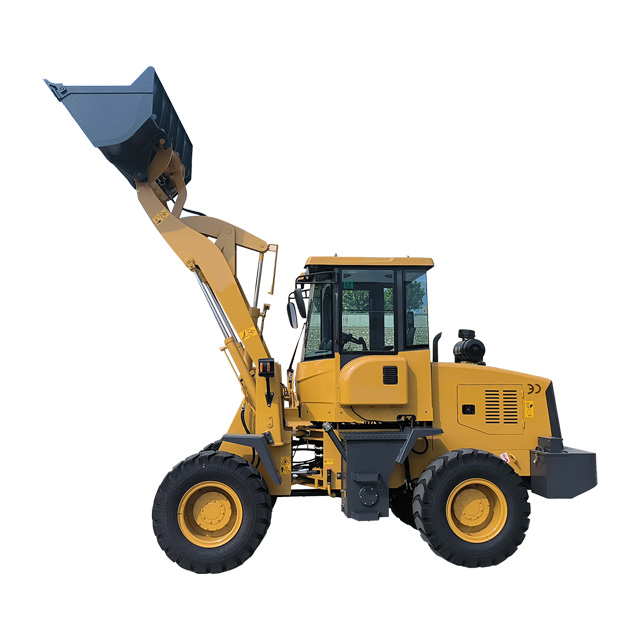

Working device with automatically leveling ability at high position |
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability |
Integral, luxury instrument board. |
New, luxury cabin |
Technical Specifications:
Item | Specification | Item | Specification |
Bucket capacity | 0.9m3 | Rated power | 53kW/2400rpm |
Rated load | 1800kg | Tyre | 16/70-20 |
Dumping height | 3130mm | Overall dimensions | 5700*2100*2870 |
Wheel thread | 1470mm | Operating weight | 4900kg |
Wheel base | 2300mm | Min. ground clearance | 320mm |
Max. Dumping reach | 840mm | Max. speed | 22km/h |
ABOUT US
Since 2013, TIANLU’s vision to build a first-class enterprise, to foster first-class employees, and to make first-class contributions to society has never wavered.
We have focused on delivering value to customers, employees, shareholders, and the public by offering high-quality products and services,
providing a work environment full of opportunities, releasing financial reports to meet investor expectations, and exerting our own influence to help those in need.
FAQ
Q1:Are you original manufacturer?
A: Yes, we TIANLU are an official leading manufacturer in construction machinery. Our company was founded in 2004. We are quite young yet energetic and have a lot of room for development.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, SGS.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
