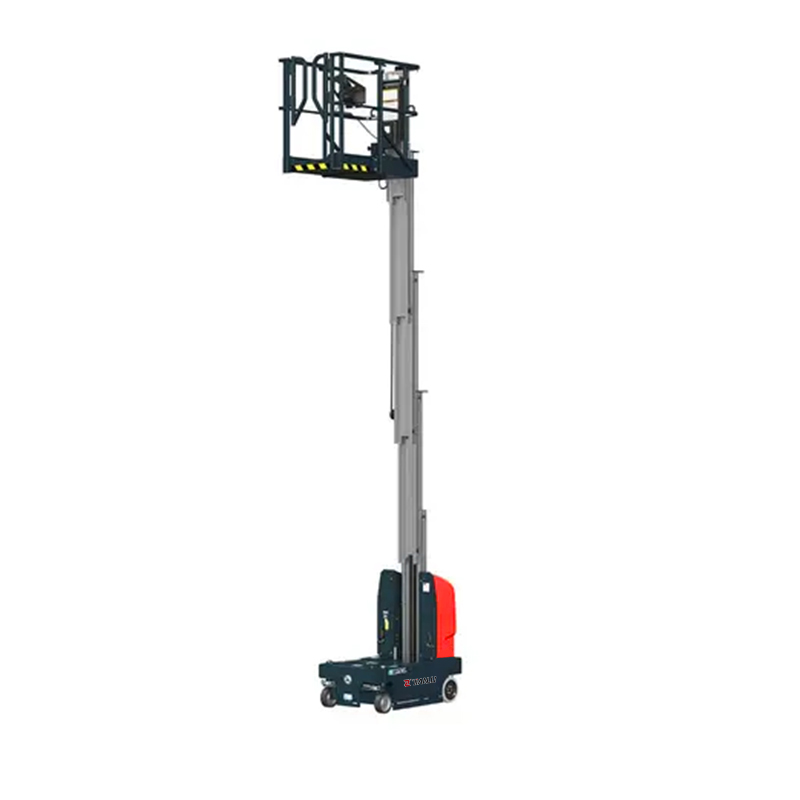

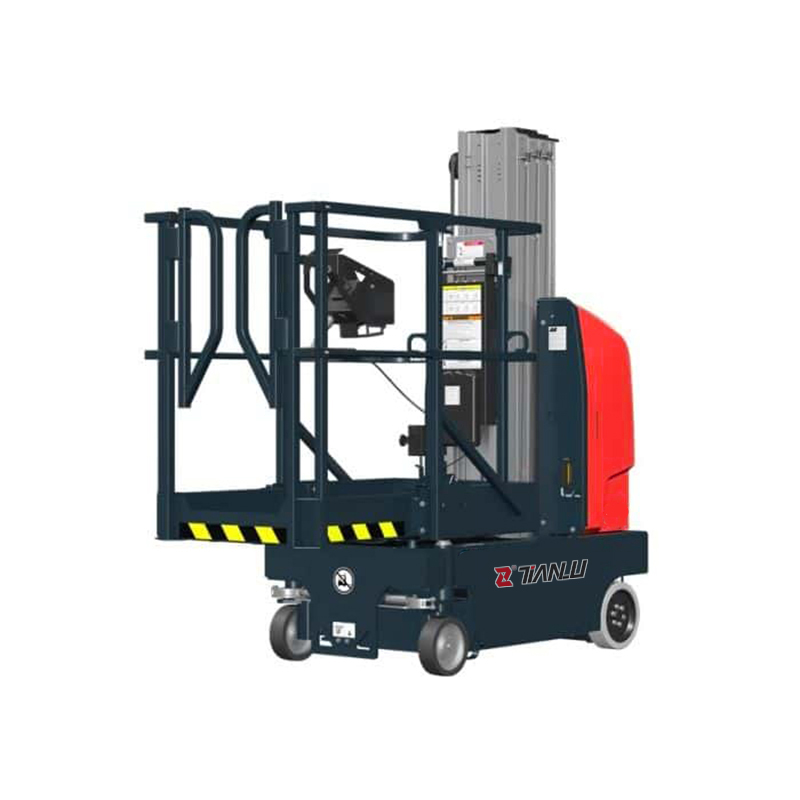

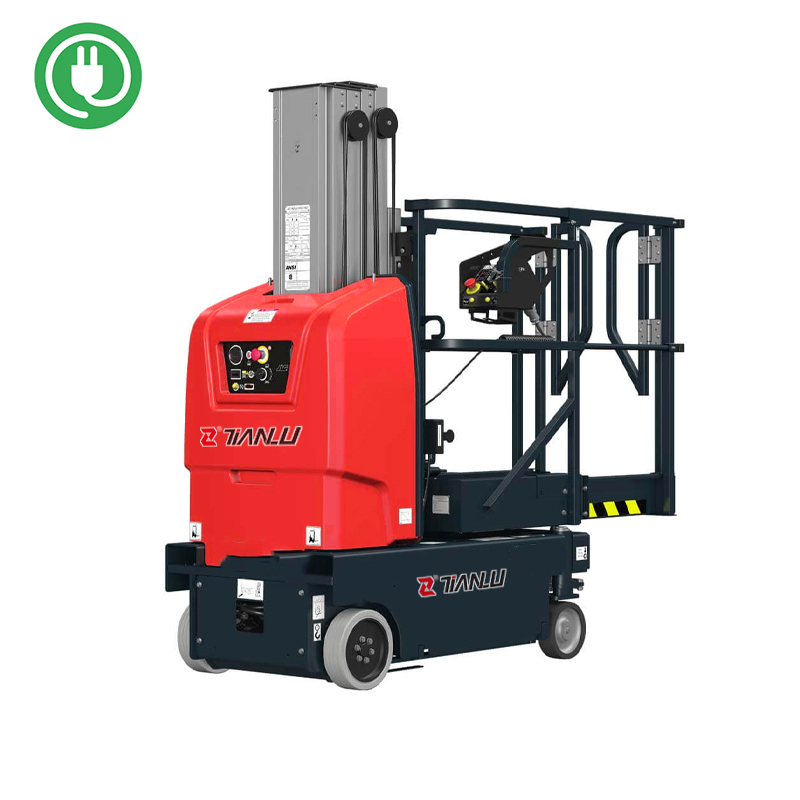

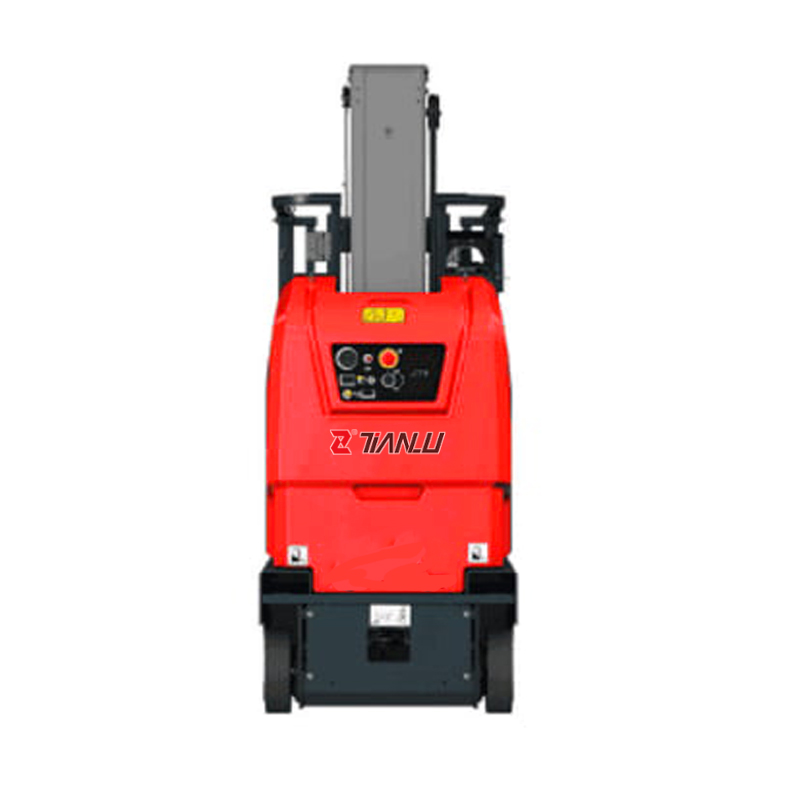

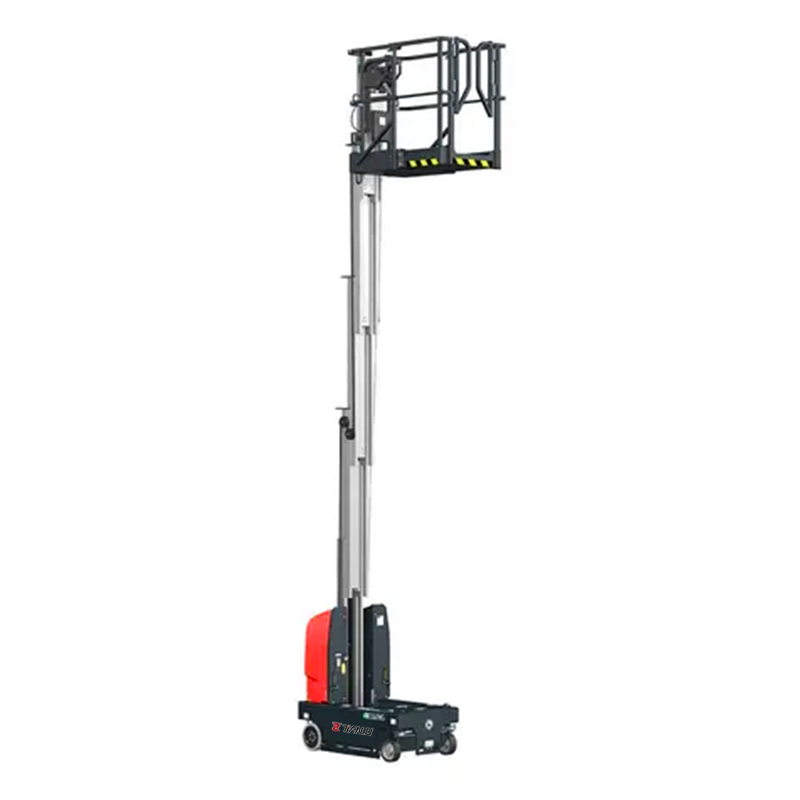

| Model | Parameter |
| Maximum Working Height | 10m |
| Maximum Platform Height | 8m |
| Maximum Horizontal Extension | 3.5m |
| Load Capacity (Indoors) | 200kg |
| Platform Dimensions | 0.8*0.9m |
| Overall Length of the Machine | 2.3m |
| Overall Width of the Machine | 1m |
| Overall Height of the Machine (Stored) | 1.99m |
| Ground Clearance | 85mm |
| Wheelbase | 1.2m |
| Slewing of the Turntable | 356° |
| Tires | 406*125mm |
| Travel Speed (Stored) | 0 - 4.5km/h |
| Travel Speed (Lifted) | 0 - 0.845km/h |
| Maximum Tilt Angle | X 2°, Y 2° |
| Climbing Ability | 25% |
| Battery | 24V/220Ah |
| Overall Weight of the Machine | 2880kg |
Company Profile
Packaging & Shipping
Certifications
About us
FAQ
Q1:Are you original manufacturer?
A: Yes, we TIANLU are an official leading manufacturer in construction machinery. Our company was founded in 2004. We are quite young yet energetic and have a lot of room for development.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, SGS.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link.
