High-performance Mini Excavator, Hydraulic Crawler Type, Compact, Flexible, And Efficient Operation, Customizable.

Home » Products » Excavator » Crawler Excavator » High-performance Mini Excavator, Hydraulic Crawler Type, Compact, Flexible, And Efficient Operation, Customizable.

High-performance Mini Excavator, Hydraulic Crawler Type, Compact, Flexible, And Efficient Operation, Customizable.

High-performance Mini Excavator, Hydraulic Crawler Type, Compact, Flexible, And Efficient Operation, Customizable.

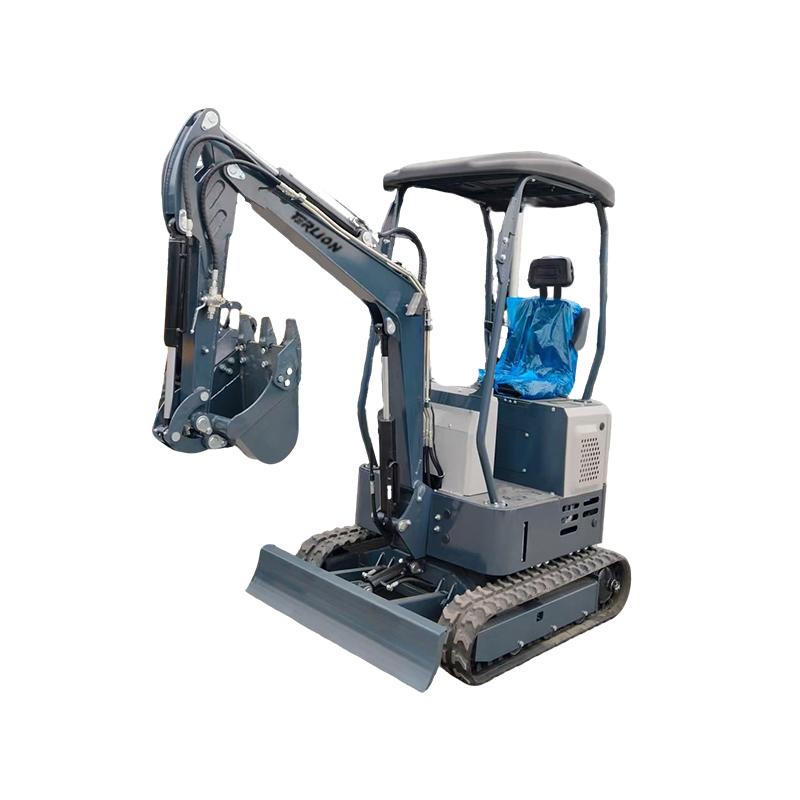

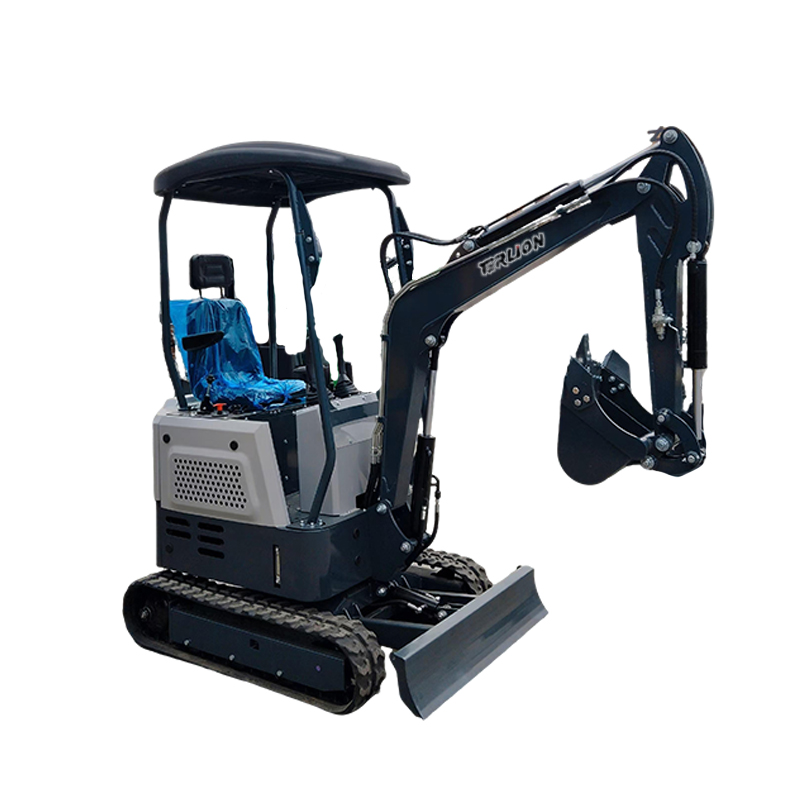

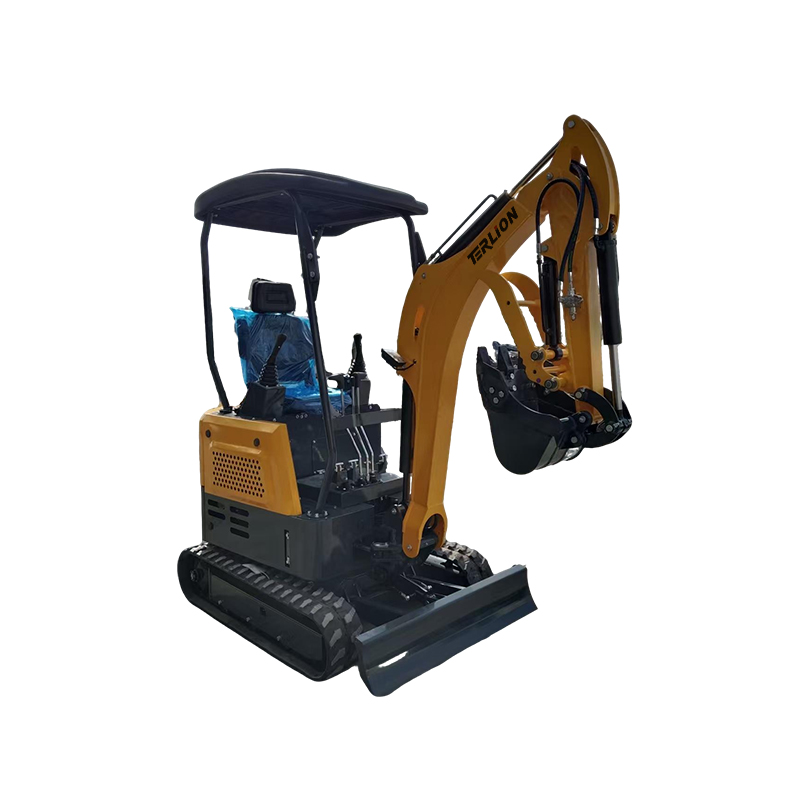

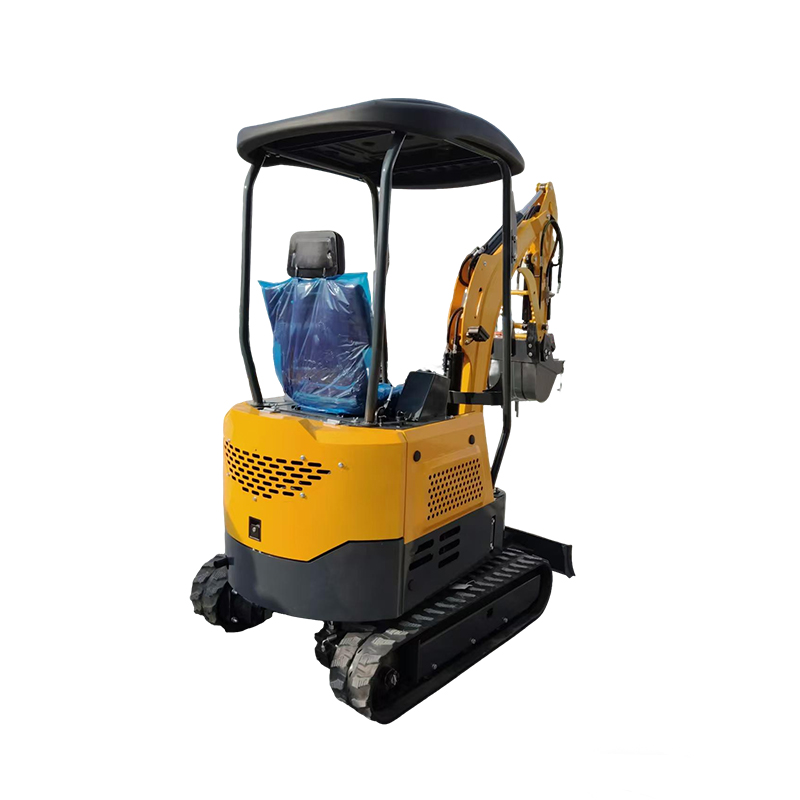

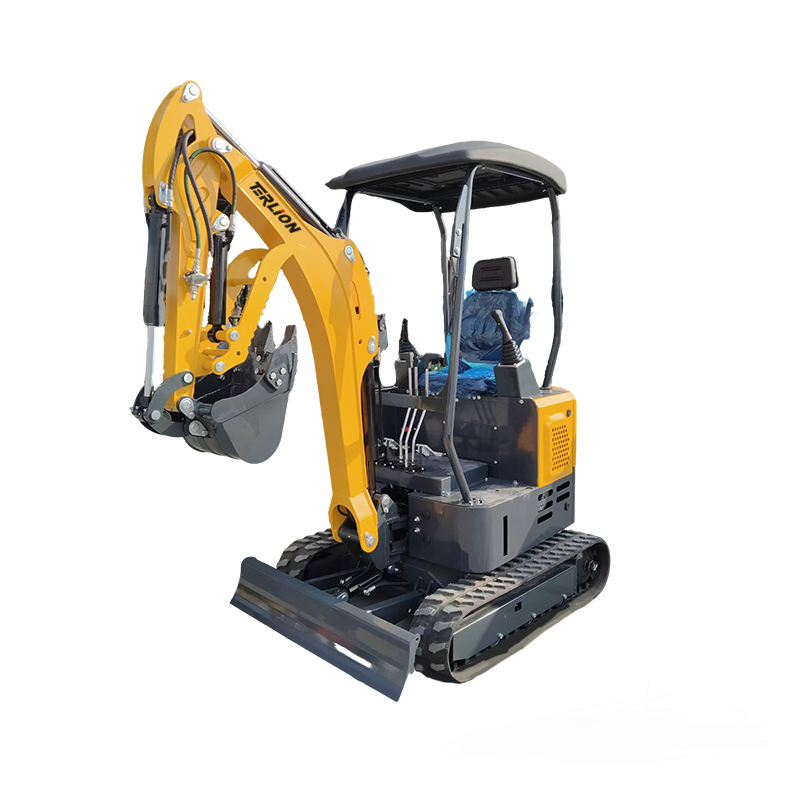

This mini excavator is small in size but powerful. Adopting hydraulic drive and crawler design, it has excellent maneuverability, can move flexibly in narrow spaces, and easily cope with various scenarios such as orchard ditching, indoor construction, and municipal repairs. It is simple and easy to operate, equipped with intelligent configurations such as proportional control, and can accurately complete operations such as excavation and crushing. At the same time, it is both fuel-efficient and durable, and also supports customized services, which can adapt to various attachments according to different needs, bringing efficient and convenient experience to your engineering operations.This mini excavator is small in size but powerful. Adopting hydraulic drive and crawler design, it has excellent maneuverability, can move flexibly in narrow spaces, and easily cope with various scenarios such as orchard ditching, indoor construction, and municipal repairs. It is simple and easy to operate, equipped with intelligent configurations such as proportional control, and can accurately complete operations such as excavation and crushing. At the same time, it is both fuel-efficient and durable, and also supports customized services, which can adapt to various attachments according to different needs, bringing efficient and convenient experience to your engineering operations.

Model:
TE17
Brand:
TIANLU

Quantity:
Availability:





Inquire Add to Basket

Mini excavator Small excavator Cheap high quality excavator Diesel excavator Crawler hydraulic excavator Mini digger Small digger New excavator Wheel excavator hydraulic excavator

Product Description

Engine
Model	Laidong,kubota,yanmar
Type	Direct injection, wind cooled, natural intake
No. of cylinder	3

Main Performance
Main Speed	r/min	0-13
Traveling Speed	km/H	2
Grade ability	KN	30°
Traveling Tracking Force	KN	8.3
Bucket Digging Force	KN	7.2
Arm Digging Force	KN	4.6
Hydraulic System
Hydraulic system working pressure	Mpa	16
Hydraulic Pump		Gear Pump
Hydraulic pump flow	L/min	18
Fuel Tank Capacity	L	26
Hydraulic Tank Capacity	L	14.5 in Hydraulic tank 21.5 in Hydraulic system

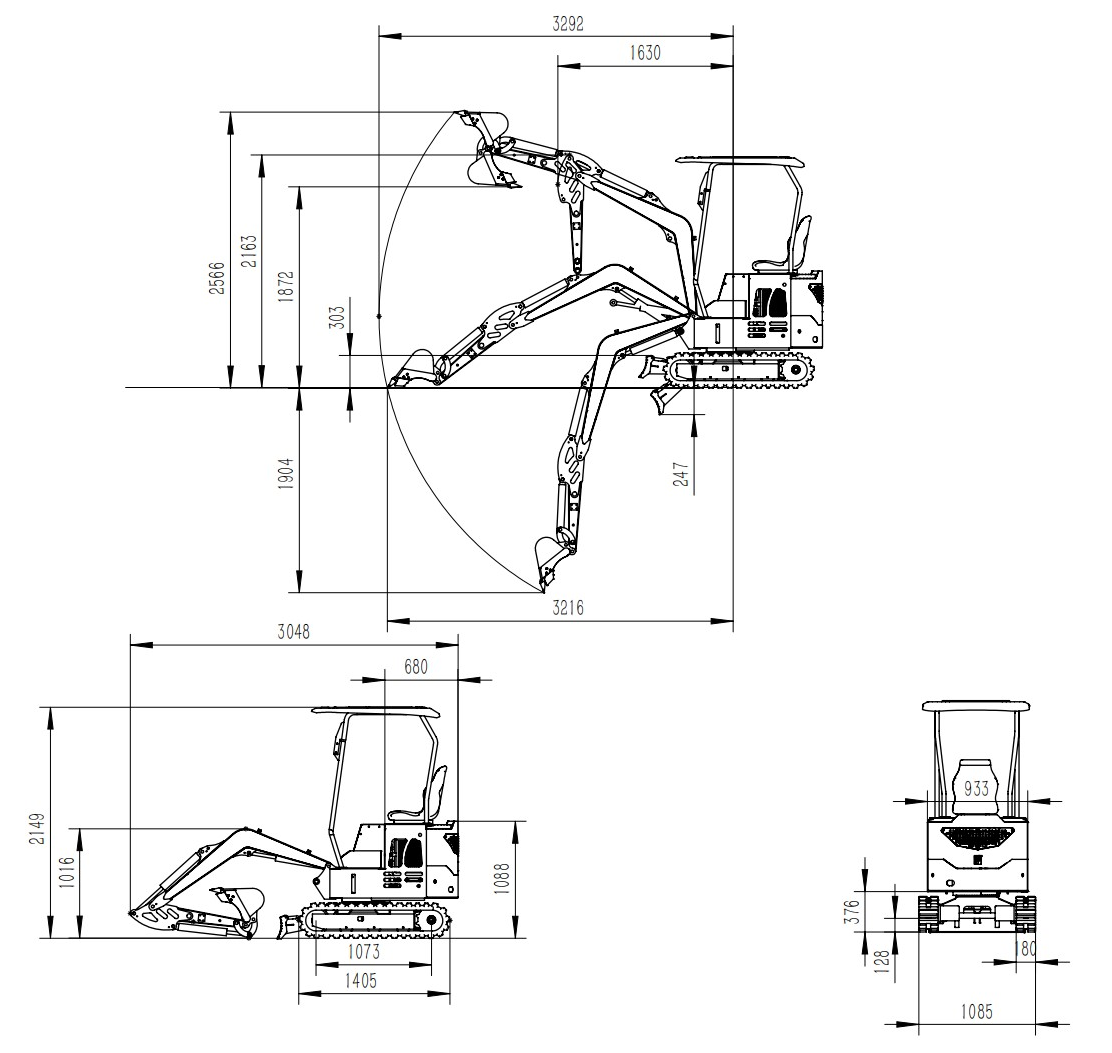

Overall Dimensions
Overall Length	mm	2840
Overall Width	mm	880
Overall Height	mm	2200
Counterweight Ground clearance	mm	385
Axle Base	mm	900
Track Width	mm	180
Undercarriage Width	mm	840
Undercarriage ground clearance	mm	132
Operation Paramters
Operation Weight	KG	1500
Bucket Capacity	m³	0.023
Max. Digging Radius	mm	3065
Max. Digging Depth	mm	1715
Max. Diiging Height	mm	2600
Max. Dumping Height	mm	1830
Tail Swing Radius	mm	800

Company Profile

Tianlu Manufacturing Workshop 拷贝 Shandong Tianlu Heavy Industry Technology Co., Ltd, is a reputed name in engineering equipment. Based in Dawenkou Valley near Mount Tai, it blends ancient culture with cutting-edge tech for engineering innovation.

Boasting strong core technologies, Tianlu holds over 110 patents (70 inventions, 40 international). Its 40+ R&D engineers collaborate with top domestic universities to lead in tech. Product lines include advanced aerial work platforms and excavators, offering high efficiency and reliability for construction and industrial use.
With global recognition, Tianlu has attended Bauma for six consecutive years and partnered with over 10 Fortune 500 firms. It holds CE, ISO 9001, and SGS certifications, meeting international standards.
A leader in China's engineering equipment sector, Tianlu expands globally in North America and Europe. Its end-to-end service ecosystem (R&D, production, sales, leasing, after-sales) delivers customized solutions, making it a trusted efficiency partner in global construction machinery.

evsssa-产品模板-20250628 1 拷贝

Our Team

adad

Trade Show

天路展会

Brand Partner

合作伙伴拷贝_副本

Certifications

Tianlu certification Tianlu Certificate

Packaging & Shipping

Tianlu packaging

FAQ

Q1:Are you original manufacturer?
A: Yes, we TIANLU are an official leading manufacturer in construction machinery. Our company was founded in 2004. We are quite young yet energetic and have a lot of room for development.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, SGS.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link.
