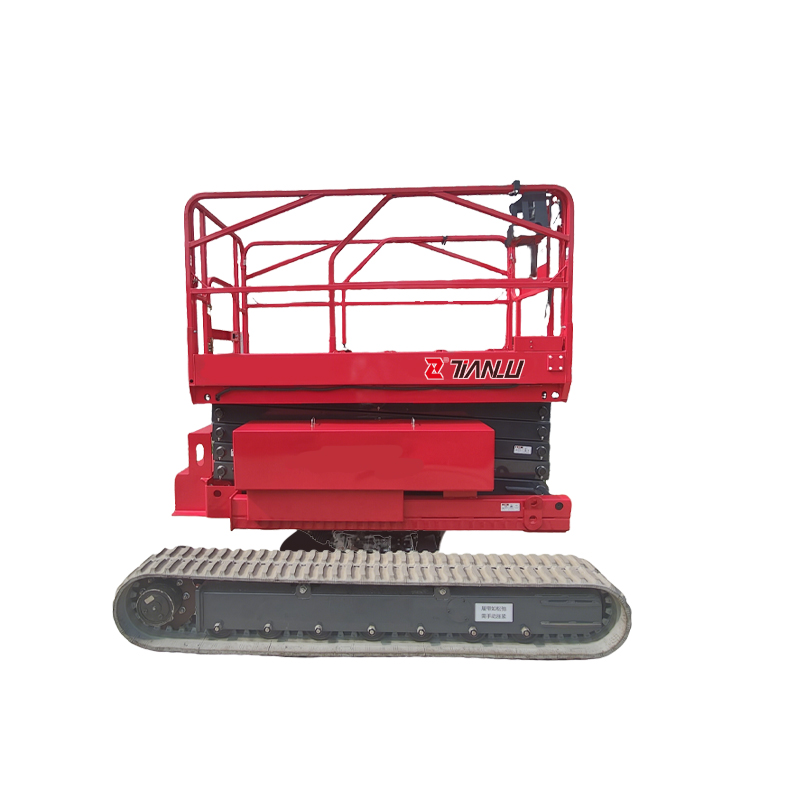

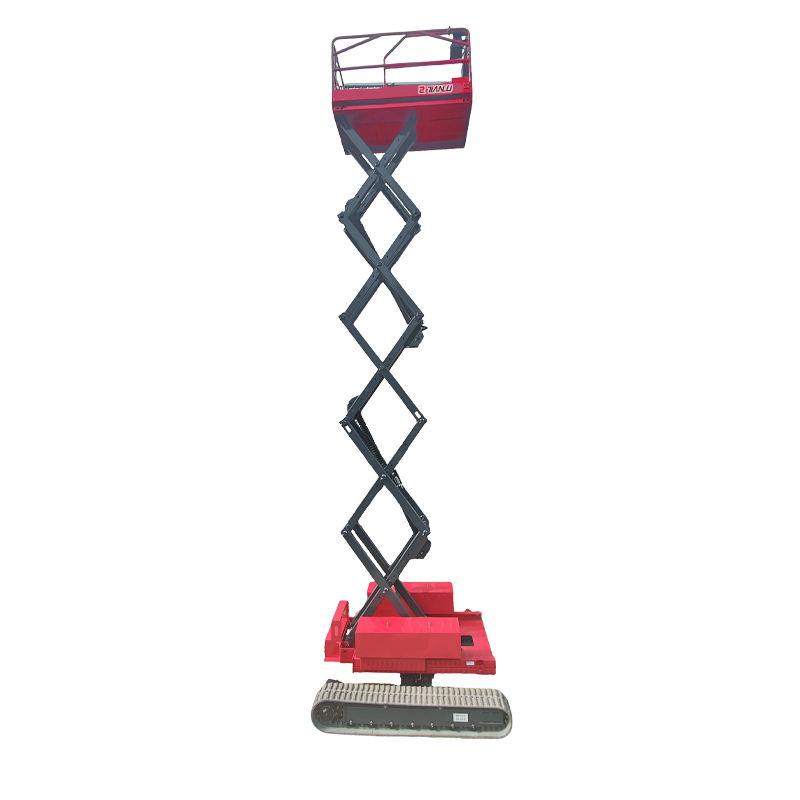

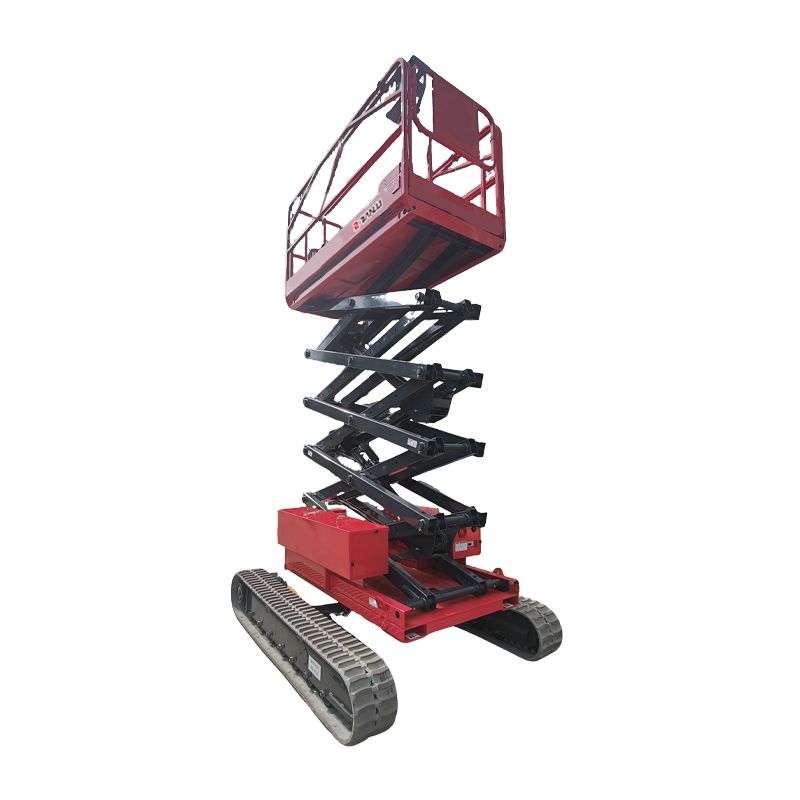

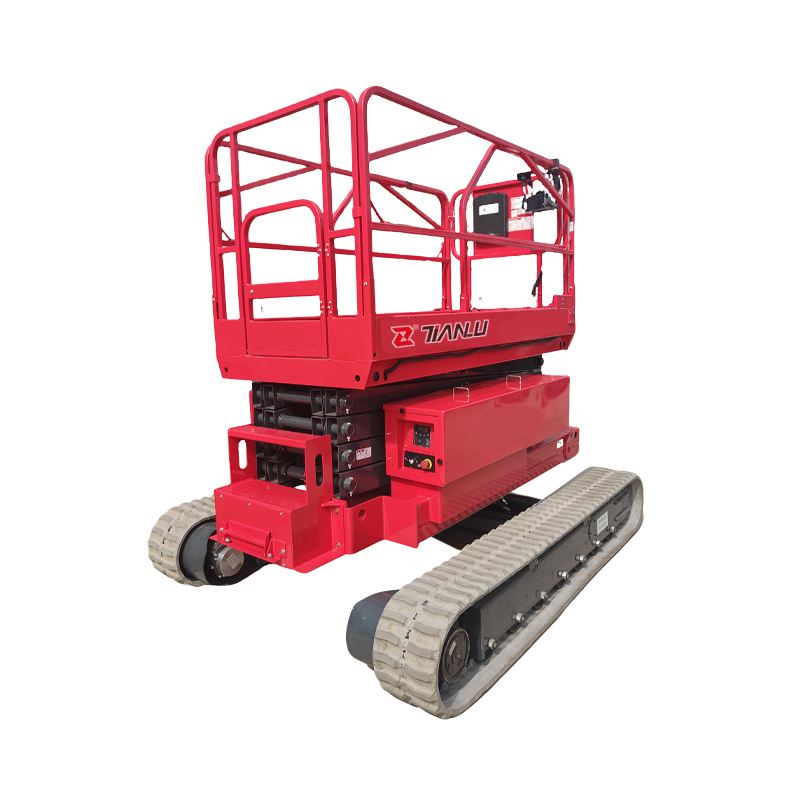

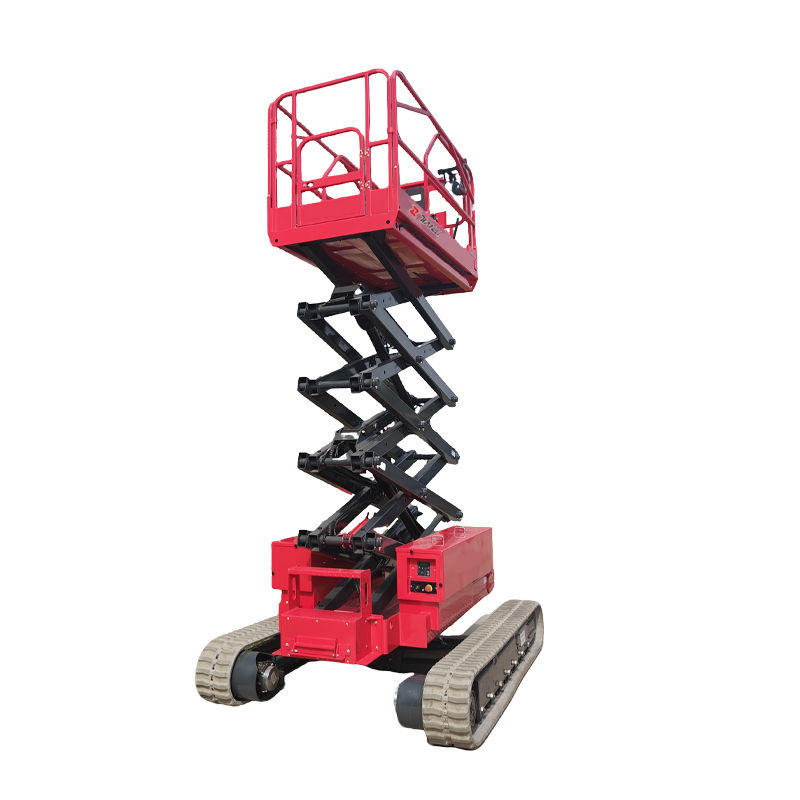

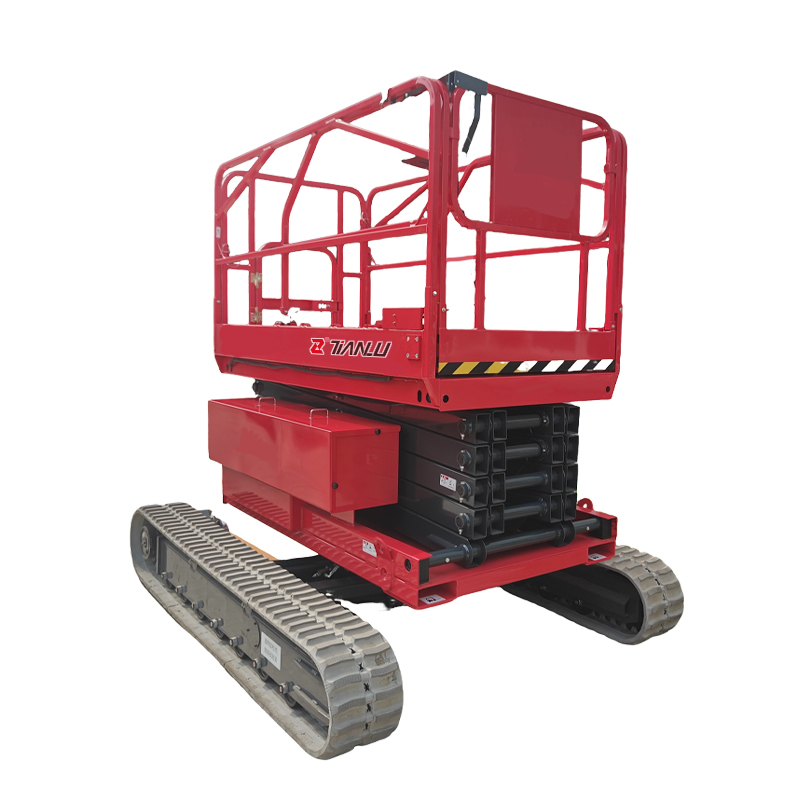

Self-Propelled Hydraulic Electric Scissor-Type Crawler Aerial Work Platform

Self-propelled hydraulic electric scissor crawler aerial work platform: All-terrain capable, eco-friendly and energy-efficient. Features stable scissor lifting, ideal for high-altitude installation and maintenance in rough terrain—safe and highly efficient.

Model:
TRPT0610C
Brand:
TIANLU

Quantity:
Availability:





Inquire Add to Basket

Self-Propelled Scissor-Type Crawler Boom Lift Fork Lift Lift Table Stair Lift Car Lift Electric Scaffolding Lift mast lift

Product Description

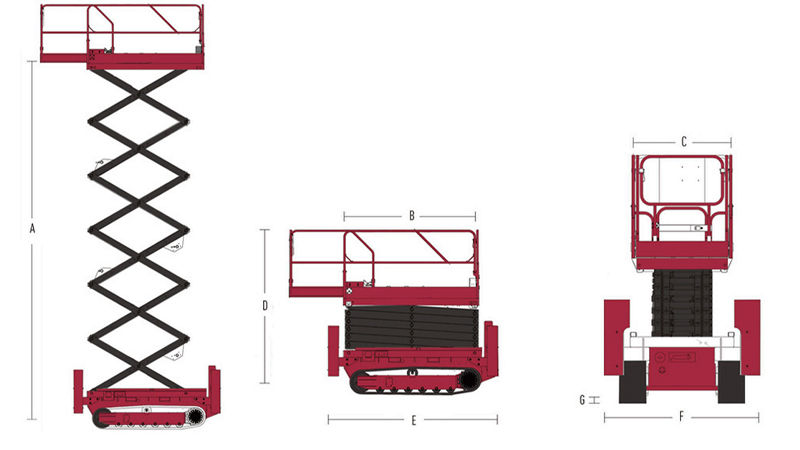

MODEL	TRPT0507C	TRPT0610C	TRPT1216C	TRPT1216CPRO	TRPT1416CPRO
A-Max. Platform Height (in/out)	4.5m/0m	5.8m/5.8m	11.8m/11.8m	11.8m/11.8m	13.8m/13.8m
Max. Working Height (in/out)	6.5m/0m	7.8m/7.8m	13.8m/13.8m	13.8m/13.8m	15.8m/15.8m
B-Platform Length	1.34m	1.67m	2.26m	2.26m	2.64m
C-Platform Width	0.72m	0.74m	1.12m	1.12m	1.12m
Extension Size	0.6m	0.9m	0.9m	0.9m	0.9m
D-Heights (Rails Up)	2.07m	2.27m	2.63m	2.63m	2.71m
Height (Rails Down)	1.71m	1.85m	2.03m	2.03m	2.01m
E-Overall Width with Outriggers	1.48m	2.33m	2.83m	2.83m	3.02m
F-Overall Width	0.79m	1.25m	1.6m	1.6m	1.6m
G- Ground Clearance	70mm	90mm	150mm	150mm	146mm
PERFORMANCE
Platform Capacity	230kg	230kg	320kg	320kg	250kg
Extension Capacity	113kg	113kg	113kg	113kg	113kg
Max. Occupancy (in/out)	1/0	2/1	2/2	2/2	2/2
Max.Wind Speed	0m/s	12.5m/s	12.5m/s	12.5m/s	12.5m/s
Drive Speed (Stowed)	4km/h	3.2km/h	4km/h	4km/h	4km/h
Turning Radius	Rotate in Place	Rotate in Place	Rotate in Place	Rotate in Place	Rotate in Place
Up-Down Time	25/20s	23/22s	65/60s	65/60s	76/53s
Gradeability	25%	40%	40%	40%	40%
Max. Slope	1.5°/3°	/	/	/	/
Leveling angle of the legs	/	8°/14°	12°/5°	12°/5°	12°/5°
Drive	Front Crawler	Rear Crawler	Rear Crawler	Rear Crawler	Rear Crawler
Crawler (mm)	150mmX72mmX43	180mmX72mmX55	300mmX72mmX67	230mmX90mmX53	300mmX101mmX48
POWER
Batteries (V/Ah)	2X12V/100Ah	4X6V/200Ah	8X6V/200Ah	8X6V/200Ah	8X6V/300Ah
Charger	100-240VAC/6.3A	100-240VAC/10A	100-240VAC/13.5A	100-240VAC/13.5A	100-240VAC/13.5A
WEIGHT
Weight	920kg	1900kg	3480kg	3660kg	4150kg

lift平

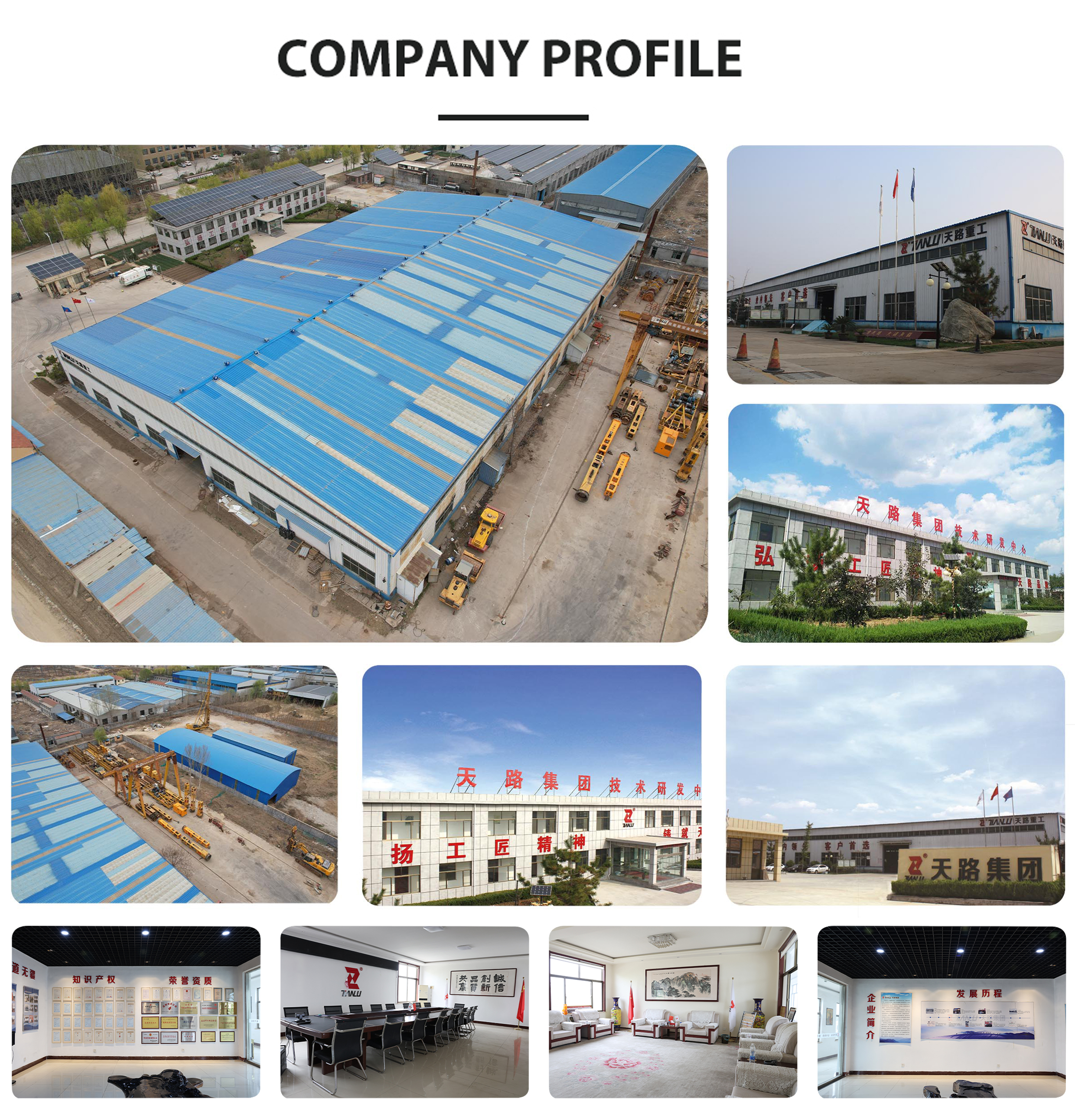

Company Profile

Tianlu Manufacturing Workshop 拷贝 Shandong Tianlu Heavy Industry Technology Co., Ltd, is a reputed name in engineering equipment. Based in Dawenkou Valley near Mount Tai, it blends ancient culture with cutting-edge tech for engineering innovation.

Boasting strong core technologies, Tianlu holds over 110 patents (70 inventions, 40 international). Its 40+ R&D engineers collaborate with top domestic universities to lead in tech. Product lines include advanced aerial work platforms and excavators, offering high efficiency and reliability for construction and industrial use.
With global recognition, Tianlu has attended Bauma for six consecutive years and partnered with over 10 Fortune 500 firms. It holds CE, ISO 9001, and SGS certifications, meeting international standards.
A leader in China's engineering equipment sector, Tianlu expands globally in North America and Europe. Its end-to-end service ecosystem (R&D, production, sales, leasing, after-sales) delivers customized solutions, making it a trusted efficiency partner in global construction machinery.

evsssa-产品模板-20250628 1 拷贝

Our Team

adad

Trade Show

天路展会

Brand Partner

合作伙伴拷贝_副本

Certifications

Tianlu certification Tianlu Certificate

Packaging & Shipping

发货 1拷贝发货2 FAQ

Q1:Are you original manufacturer?
A: Yes, we TIANLU are an official leading manufacturer in construction machinery. Our company was founded in 2004. We are quite young yet energetic and have a lot of room for development.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, SGS.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link.
