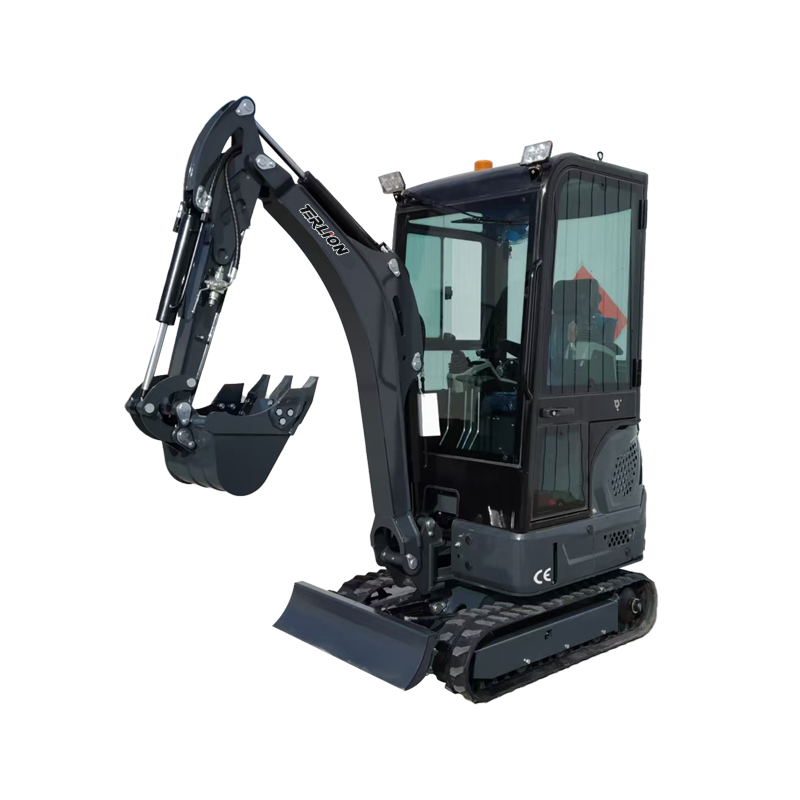

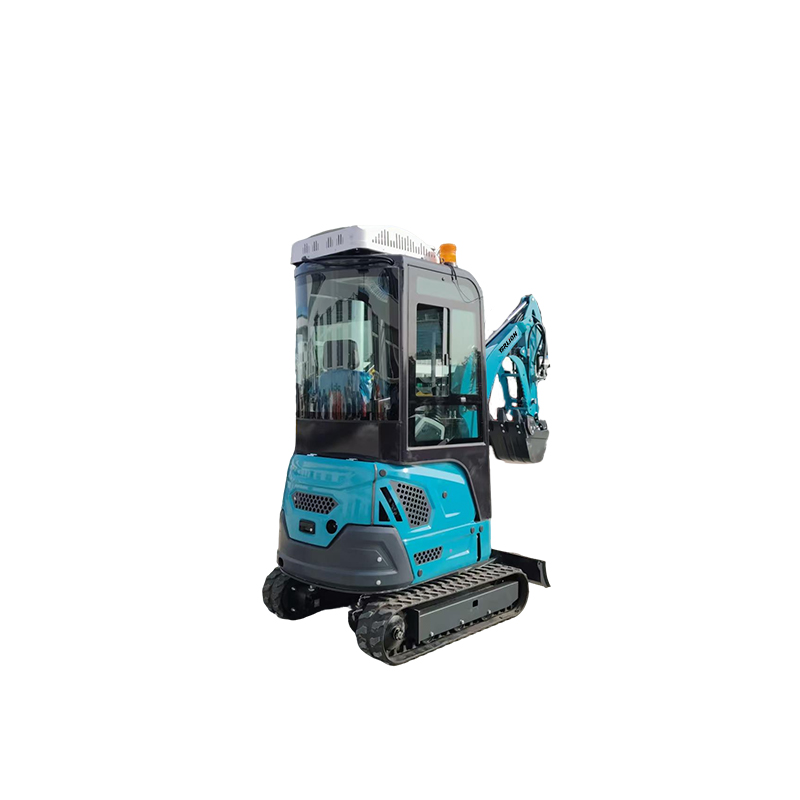

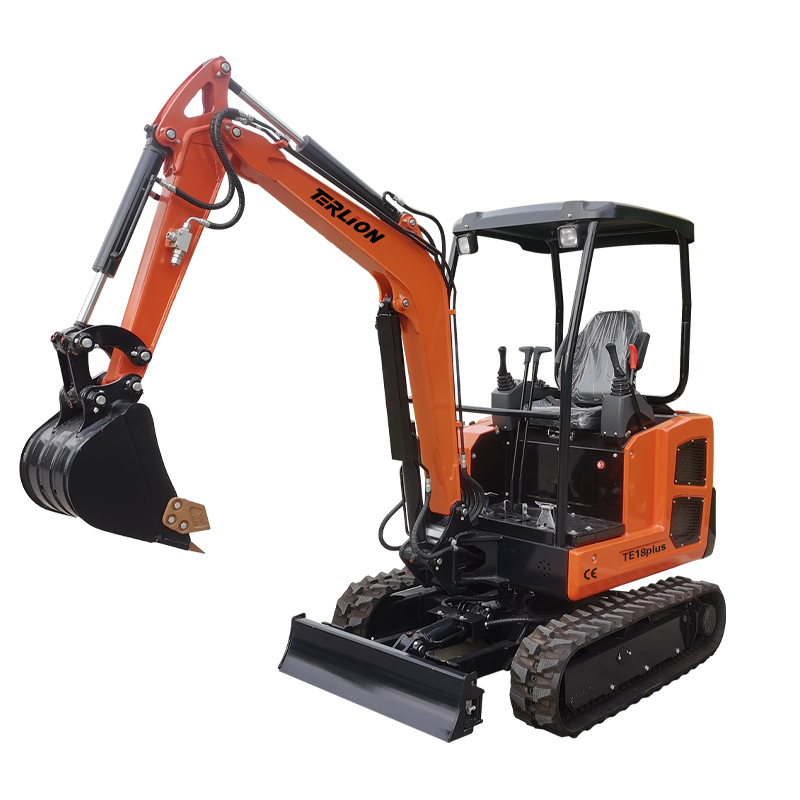

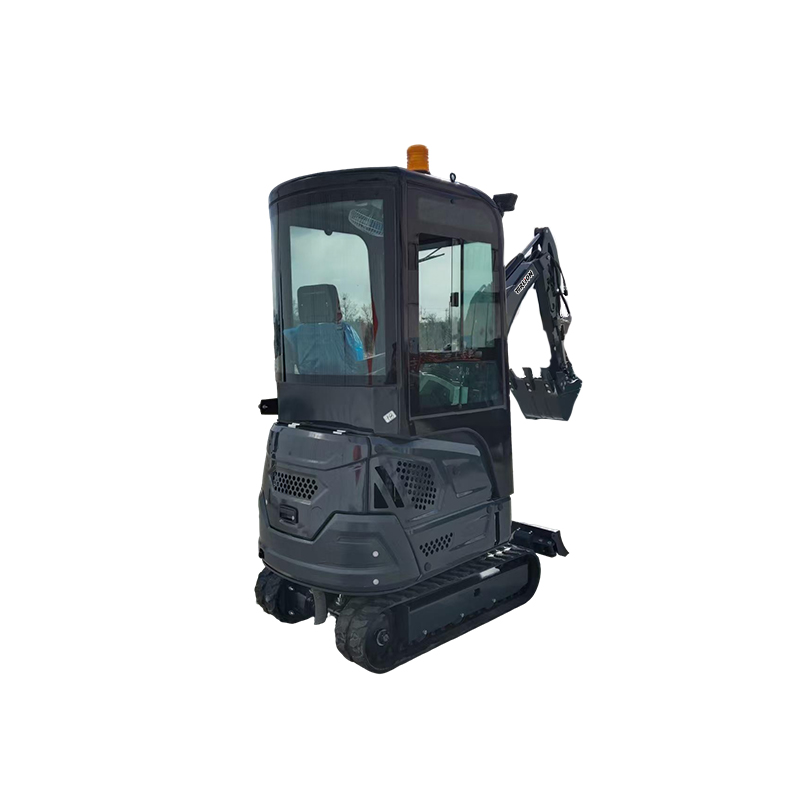

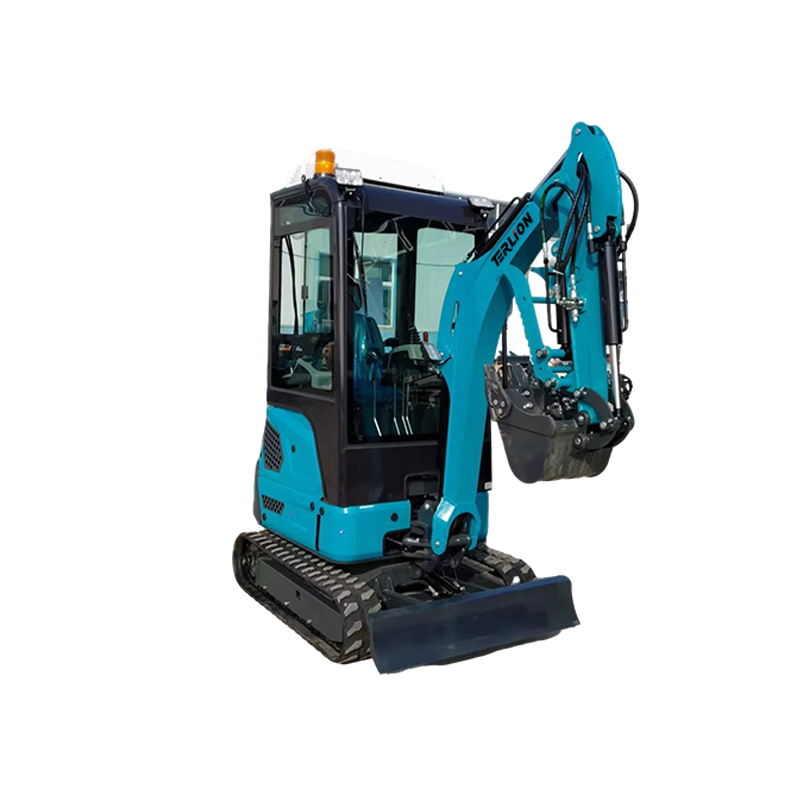

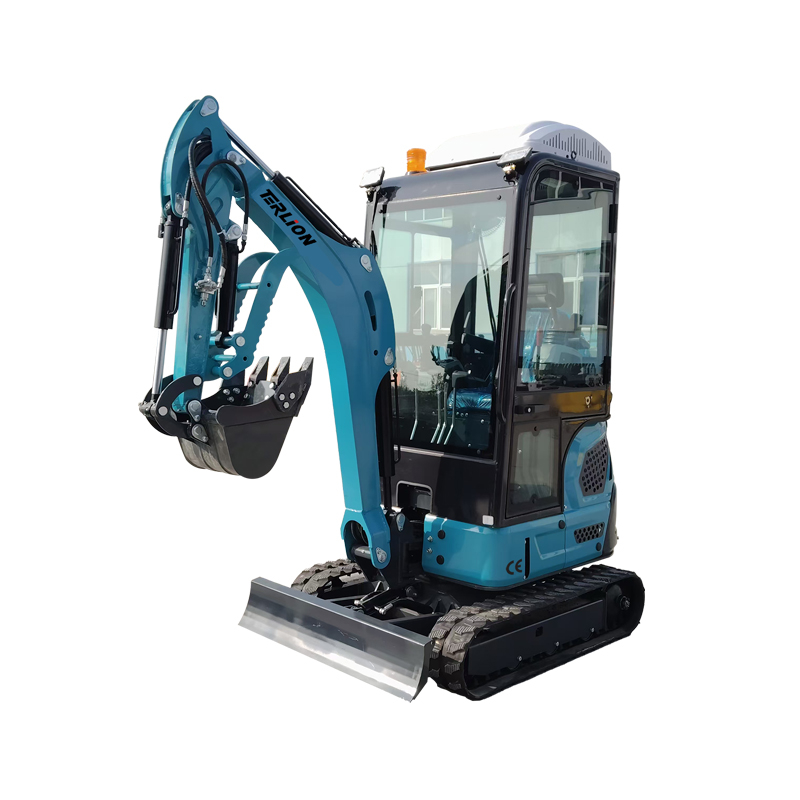

TE18
TIANLU
| Quantity: | |
|---|---|
| Engine | |
| Model | laidong/kubota/yanmar/Briggs & Stratton |
| Type | Direct injection, water-cooled, natural intake |
| No. of cylinder | 3 |
| Main Performance | ||
| Main Speed | r/min | 0-13 |
| Traveling Speed | km/H | 2 |
| Grade ability | KN | 30° |
| Traveling Tracking Force | KN | 8.3 |
| Bucket Digging Force | KN | 7.2 |
| Arm Digging Force | KN | 4.6 |
| Hydraulic System | ||
| Hydraulic system working pressure | Mpa | 16 |
| Hydraulic Pump | Gear Pump | |
| Hydraulic pump flow | L/min | 18 |
| Fuel Tank Capacity | L | 26 |
| Hydraulic Tank Capacity | L | 14.5 in Hydraulic tank 21.5 in Hydraulic system |
| Overall Dimensions | ||
| Overall Length | mm | 2840 |
| Overall Width | mm | 880 |
| Overall Height | mm | 2200 |
| Counterweight Ground clearance | mm | 385 |
| Axle Base | mm | 900 |
| Track Width | mm | 180 |
| Undercarriage Width | mm | 840 |
| Undercarriage ground clearance | mm | 132 |
| Operation Paramters | ||
| Operation Weight | KG | 1500 |
| Bucket Capacity | m³ | 0.023 |
| Max. Digging Radius | mm | 3265 |
| Max. Digging Depth | mm | 2100 |
| Max. Diiging Height | mm | 2820 |
| Max. Dumping Height | mm | 2150 |
| Tail Swing Radius | mm | 800 |
FAQ
Q1:Are you original manufacturer?
A: Yes, we TIANLU are an official leading manufacturer in construction machinery. Our company was founded in 2004. We are quite young yet energetic and have a lot of room for development.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, SGS.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
