16-Meter Articulating Boom Lift Suitable for Multi-Scenario Aerial Work

It adopts a multi-section articulating boom structure, allowing the boom to achieve 360° horizontal rotation and multi-angle vertical bending. With a minimum turning radius of only 1.8 meters, it can easily cross ground obstacles (such as scaffolding, pipelines, and green belts) and accurately reach operation points that are difficult for traditional straight-boom equipment to access (such as building corners and high-altitude areas in narrow lanes). Its operation coverage area is 40% higher than that of straight-boom equipment.It adopts a multi-section articulating boom structure, allowing the boom to achieve 360° horizontal rotation and multi-angle vertical bending. With a minimum turning radius of only 1.8 meters, it can easily cross ground obstacles (such as scaffolding, pipelines, and green belts) and accurately reach operation points that are difficult for traditional straight-boom equipment to access (such as building corners and high-altitude areas in narrow lanes). Its operation coverage area is 40% higher than that of straight-boom equipment.

Model:
TRAB16E
Brand:
TIANLU

Quantity:
Availability:





Inquire Add to Basket

Boom Lift Fork Lift Lift Table Stair Lift Car Lift Scissor Car Lift Stair Chair Lift Towable Boom Lift Electric Scaffolding Lift Aerial Lifting Platform

Product Description

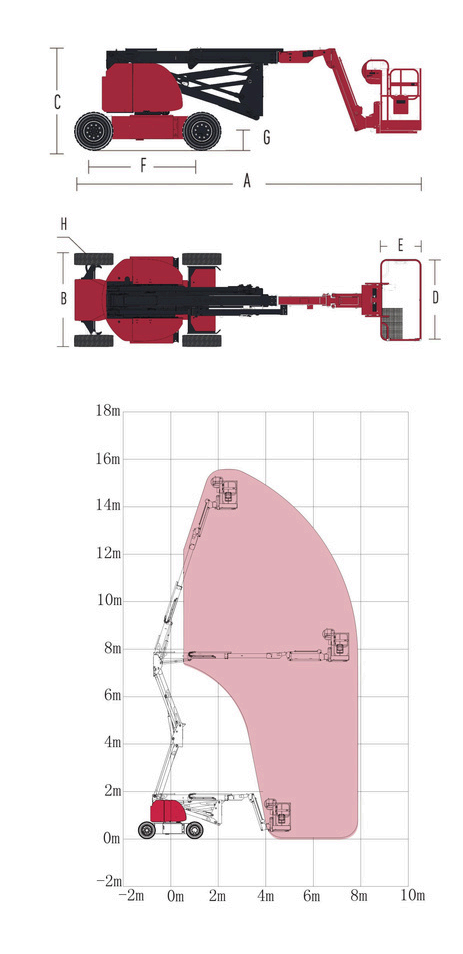

MODEL	TRAB16E
Max.Working Height	17.7m
Max. Platform Height	15.7m
Max. Horizontal Extension	9.13m
Max.Up and Over Height	7.6m
A- Length (Stowed)	6.98m
B- Width (Stowed)	1.9m
C- Height (Stowed)	1.96m
D- Platform Length	1.52m
E- Platform Width	0.76m
F- Wheelbase	2.01m
G- Ground Clearance	0.23m
PERFORMANCE
Platform Capacity	230kg
Max.Drive Speed (Stowed)	4.8km/h
Gradeability	30%
Turning Radius(In.)	0.8m
Turning Radius(Out.)	3.8m
Turntable Rotation	355°
Platform Rotation	±90°
H Tail Swing	0.9
Tilt Rating	4°
Operating Wind Speed	12.5m/s
Lift Motor	5kw
Drive Motor	5kw
POWER
Batteries(V/Ah)	48V/320Ah
Charger	100-240VAC/13.5A
Tires	705X210X445
WEIGHT
Weight	7800kg

20250820164335

Company Profile

Tianlu Manufacturing Workshop 拷贝 Shandong Tianlu Heavy Industry Technology Co., Ltd, is a reputed name in engineering equipment. Based in Dawenkou Valley near Mount Tai, it blends ancient culture with cutting-edge tech for engineering innovation.

Boasting strong core technologies, Tianlu holds over 110 patents (70 inventions, 40 international). Its 40+ R&D engineers collaborate with top domestic universities to lead in tech. Product lines include advanced aerial work platforms and excavators, offering high efficiency and reliability for construction and industrial use.
With global recognition, Tianlu has attended Bauma for six consecutive years and partnered with over 10 Fortune 500 firms. It holds CE, ISO 9001, and SGS certifications, meeting international standards.
A leader in China's engineering equipment sector, Tianlu expands globally in North America and Europe. Its end-to-end service ecosystem (R&D, production, sales, leasing, after-sales) delivers customized solutions, making it a trusted efficiency partner in global construction machinery.

evsssa-产品模板-20250628 1 拷贝

Our Team

adad

Trade Show

天路展会

Brand Partner

合作伙伴拷贝_副本

Certifications

Tianlu certification Tianlu Certificate

Packaging & Shipping

发货 1拷贝发货2 FAQ

Q1:Are you original manufacturer?
A: Yes, we TIANLU are an official leading manufacturer in construction machinery. Our company was founded in 2004. We are quite young yet energetic and have a lot of room for development.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, SGS.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link.
