TE08

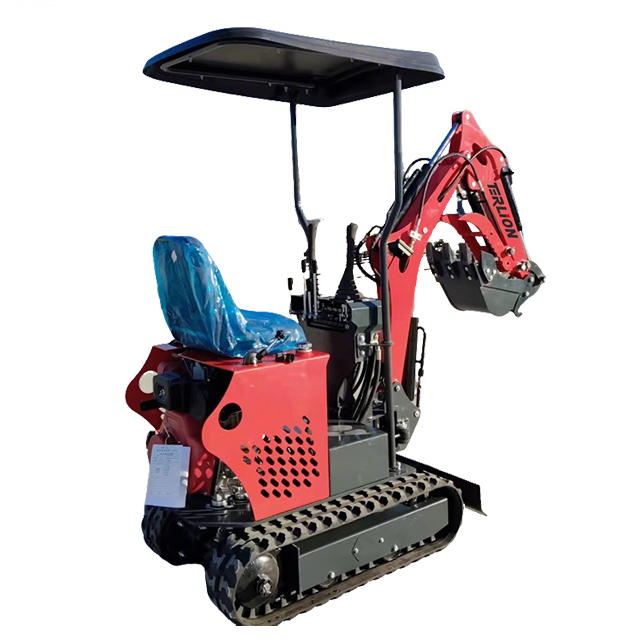

TE08 Type excavator

External dimensions

Long2,055 millimeter Wide 770 millimetersTall

2064 millimeters

Operating parameters of the excavator

Weight of the whole machine

655KG

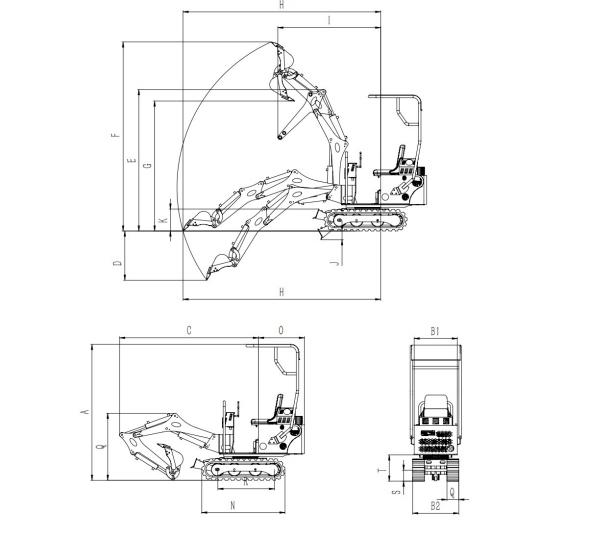

Maximum excavation depth D

1,250 millimeters

Engine

RuntongR420D/Baili

Tong XR2100/Science Popularization 192

Maximum excavation height F

2,800 millimeter

Engine horsepower

13.5HP/13.5HP/ 11 HP

Maximum unloading height E

1860 millimeter

Engine speed

3,000 rpm

The maximum excavation radius H

2,570 millimeters

Oil consumption

1 to 1.6 litel

Minimum turning radius I

1000mm

Walking speed

The maximum excavation distance

2,100 millimeter

Climbing ability

30 °

The lifting height of the bulldozer K

180 millimeters

Operation mode

Mechanical operation

The depth of descent of the bulldozer J.

210 millimeters

Capacity of hydraulic oil tank

16L

Radiator

The wind is cold

Diesel tank capacity

Eight litens

Oil capacity

The fifth grid of the oil ruler
