How Much is 1 Ton mini Excavator Price

1. Factors Affecting 1 Ton mini Excavator Prices

Many separate variables push total cost up or down. Below sections unpack each factor with real market reference data.

2.1 Operating Weight and Digging Performance

Listed “1 ton” machines cover actual working weights of 0.8 1.2 tons. Heavier builds use thicker steel frames for better stability. Deeper digging capacity also raises production costs. Below are current new unit price brackets sorted by real operating weight.

· 0.8 0.9 Ton: Ultra compact entry models for backyard jobs. Prices range $4,500 $8,000. Example: budget domestic model with 5.2 ft digging depth starts around $5,100.

· 1.0 1.1 Ton: Standard size unit for most landscaping and utility work. Prices sit $7,500 $18,000. Example: mid tier unit reaches 6 ft maximum digging depth for roughly $11,200.

· 1.1 1.2 Ton: Reinforced frame for frequent heavy daily operation. Prices range $16,000 $26,000. Example: imported engine model hits 6.4 ft digging depth at around $21,000.

Dig depth and horizontal reach grow alongside machine weight. You will pay extra for enhanced digging ability.

2.2 Engine Configuration and Emission Certification

Engine configuration directly impacts price, as higher-quality engines and stricter emission certification increase manufacturing and compliance costs. Common configurations and their additional price ranges include:

· Domestic standard engine: Fits non strict emission regions. Cost adds $0 $2,200. Works well for light use private projects.

· Import branded engine (Kubota / Yanmar): Delivers stable output and longer service life. Adds $3,000 $7,000 to base cost.

· EPA / EU Stage V certified power unit: Meets strict North America and Europe emission rules. Certification work raises price by $2,500 $6,000.

Gasoline power options sit at the lowest price tier. Diesel versions carry higher upfront cost yet cut long term fuel spending. Always confirm engine model and certification papers before comparing supplier quotes.

2.3 Hydraulic Performance

Hydraulic performance affects lifting force, operating precision, attachment compatibility, and overall machine cost:

· Standard Gear Pump: Suitable for basic digging and lifting tasks, with a lower-cost configuration. It typically adds around $0–$1,000 to the base machine price. Example: Entry-level mini excavators often use gear-pump systems for standard applications.

· Pilot-Operated Hydraulics: Provides smoother joystick control and more precise machine movements, usually adding $1,200–$3,800. Example: A pilot-controlled excavator is better suited for grading, landscaping, and precision digging.

· Auxiliary Hydraulic Circuit: Supports attachments such as hydraulic breakers and augers, typically adding $800–$2,500. Example: A machine equipped with an auxiliary line can operate a hydraulic hammer without additional hydraulic modifications.

· Advanced Hydraulic System: Higher-flow systems support demanding attachments and continuous work, but increase the overall machine cost and maintenance requirements.

Standard hydraulic systems suit basic projects, while pilot controls and auxiliary circuits are more suitable for professional users requiring higher precision, attachment flexibility, and productivity.

2.4 Customization and Additional Attachments

Optional upgrades quickly increase total investment. Below lists popular add ons and typical extra fees.

· Closed operator cab: Protects operators against bad weather. Adds $2,000 $5,000.

· Hydraulic thumb clamp: Holds rocks, branches, and demolition rubble. Costs $900 $2,400.

· Hydraulic breaker hammer: Handles concrete breaking jobs. Adds $1,500 $4,200.

· Auger drill bit: Drills post holes for fences and decks. Extra charge $1,000 $3,000.

· Expandable track undercarriage: Widens stance for better stability. Adds $1,100 $2,800.

· Steel track option: Replaces rubber tracks for sharp rocky ground. Costs $700 $2,100.

A base spec machine fitted with cab, thumb, and breaker can run 25 45% higher than bare unit pricing.

2.5 New vs. Used vs. Rental

· New excavator: Includes factory warranty (1 2 years). Supports full custom configuration. Price range $4,500 $35,000.

· Used excavator: Delivers 30 55% cost savings versus new units. 1 3 year old examples sell for $3,800 $17,000. Always check hydraulic leaks, engine hours, and maintenance logs before purchase.

· Rental service: Makes sense for short term projects. Typical rates run $120 $220 per day. Weekly rates sit $550 $950. Monthly rental costs range $1100 $2100.

For instance, a 1 ton second hand unit with 420 working hours may sell for $6,200. Renting an equivalent new unit from equipment rental firms costs roughly $620 each week.

2.6 Brand and Manufacturer

Well known brands carry price premiums for reliable parts supply and after sales help.

· Kubota: Premium Japanese compact equipment. Prices $19,000 $35,000.

· Yanmar: Trusted for small size diesel power. Prices $17,000 $32,000.

· Bobcat: Popular across North American rental fleets. Prices $18,500 $34,000.

· Mid tier Chinese brands: Balance performance and competitive pricing. Prices $7,000 $20,000.

· Budget entry manufacturers: Target occasional private home use. Prices $4,500 $11,000.

· Custom OEM factories: Build special modified units. Starting price from $13,000 upward.

2.7 Geographic Location

Shipping expense, local tax rules, and regional safety standards shift final landed costs. Buyers in Asia can source local built units at lower total spend. North America and Europe buyers face import fees plus strict emission compliance costs. These factors lift final landed cost by 20 35% versus factory FOB price.

2. Typical Specifications and Parameters

Below lists standard specs grouped into entry level, mid range, and well equipped premium variants. All data draws from current industry product catalogs.

Entry Level 1 ton compact digger (0.8 0.9 ton)

· Operating Weight: 1760 1980 lbs

· Max Digging Depth: 4.9 5.2 ft

· Bucket Capacity: 0.04 0.06 m³

· Power Source: Gas or basic domestic diesel engine

· Machine Width: 28 31 inches

· Features: Open canopy, manual controls, rubber tracks

· Price Range: $4,500 $8,000 (new); $120 $160 / day for rental

· Example: budget 0.85 ton unit with 10 horsepower gas engine starts around $5,300.

Mid Range 1 ton compact digger (1.0 1.1 ton)

· Operating Weight: 2200 2420 lbs

· Max Digging Depth: 5.5 6.1 ft

· Bucket Capacity: 0.06 0.08 m³

· Power Source: Domestic or optional imported diesel engine

· Machine Width: 31 35 inches

· Features: Auxiliary hydraulic line, expandable tracks, safety stop device

· Price Range: $7,500 $18,000 (new); $550 $780 / week rental

· Example: mid spec unit with domestic diesel engine sells near $11,500.

Premium 1 ton compact digger (1.1 1.2 ton)

· Operating Weight: 2420 2640 lbs

· Max Digging Depth: 6.1 6.5 ft

· Bucket Capacity: 0.07 0.09 m³

· Power Source: Certified imported diesel engine

· Machine Width: 34 38 inches

· Features: Pilot joystick, closed cab option, full safety sensor set

· Price Range: $16,000 $35,000 (new); $1300 $2100 / month rental

· Example: EPA certified imported engine unit costs roughly $22,800.

1. Applications and Use Cases

Different work scenarios call for different feature sets. Matching specs to jobs prevents over spending.

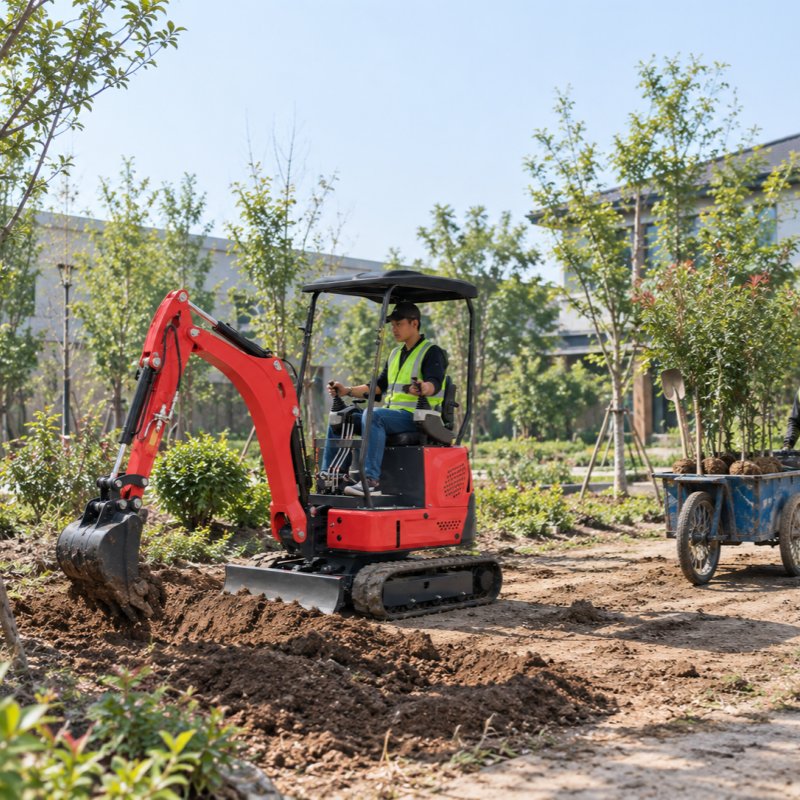

· Landscaping: Dig tree holes, shape yards, and move garden soil. Rubber tracks protect lawn surfaces.

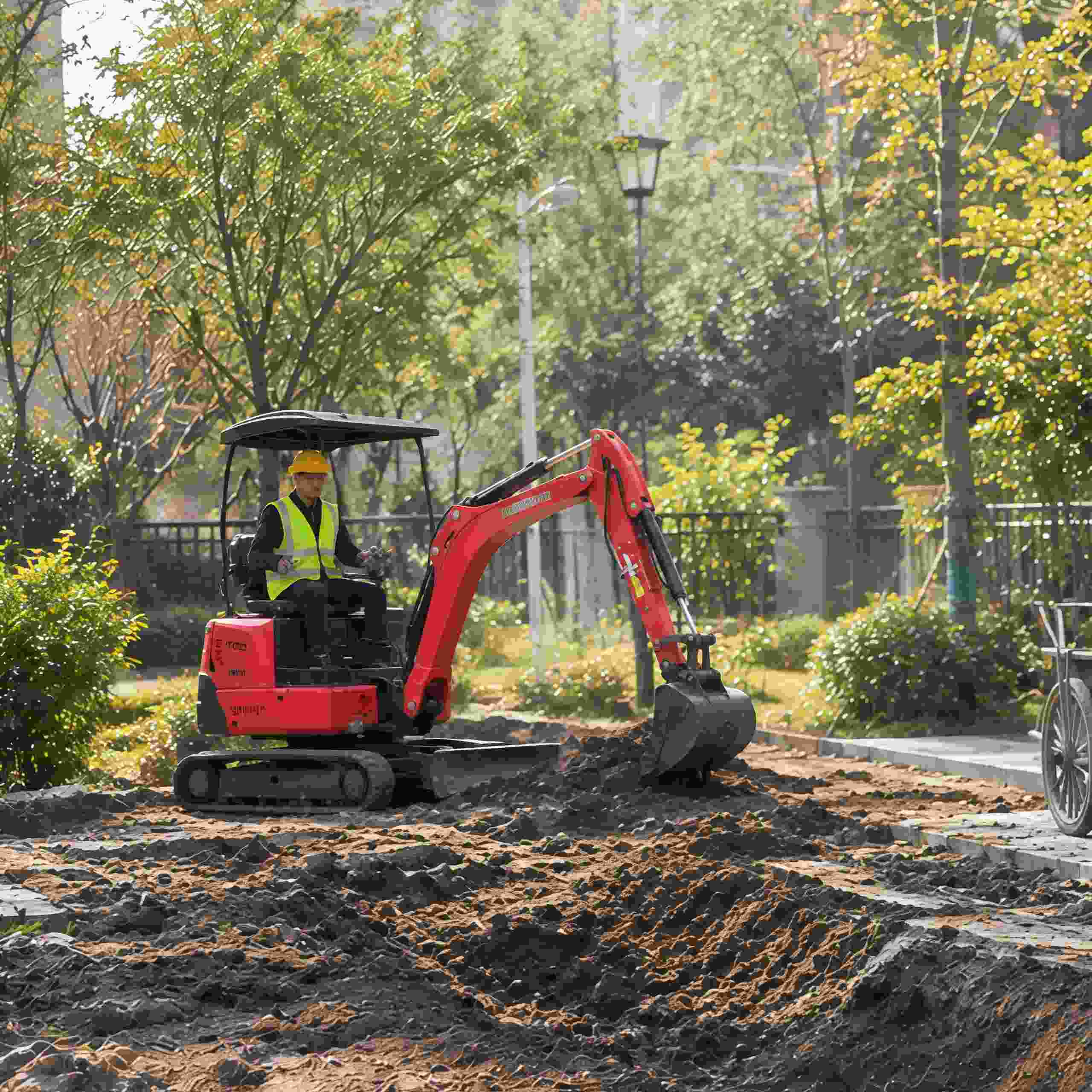

· Residential renovation: Trench for water pipes and electrical lines around houses. Narrow body fits backyard gate openings.

· Utility maintenance: Repair underground cables and drainage pipelines in crowded urban neighborhoods.

· Small demolition: Break old concrete paths and remove small masonry structures with breaker attachments.

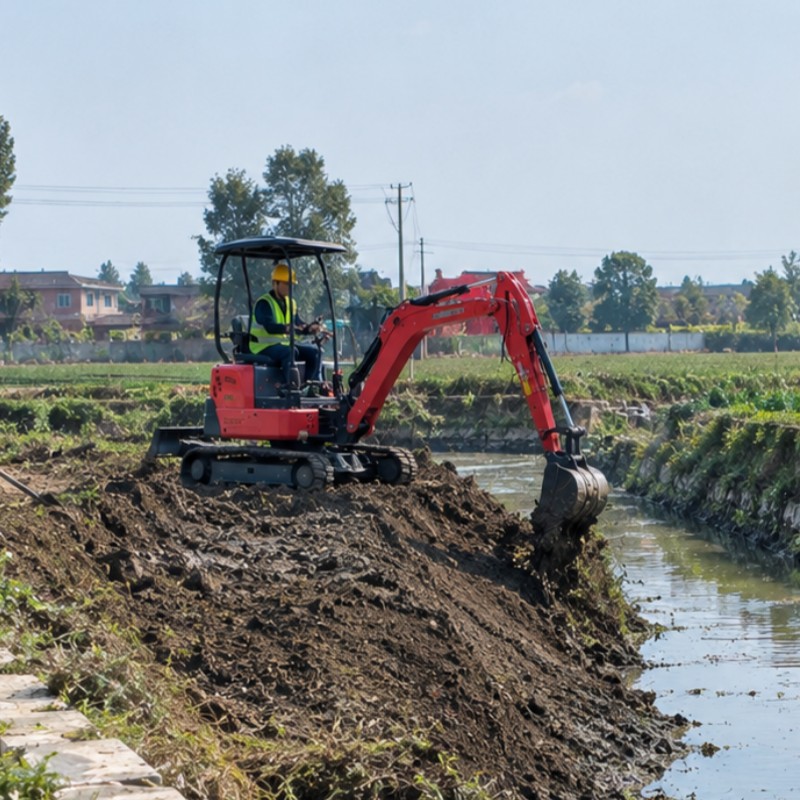

· Farming work: Dig irrigation ditches and handle farm material moving on small family farms.

· Rental fleet business: Serve local small contractors and DIY homeowners across short term job assignments.

Cab enclosures benefit teams working through rainy or cold seasons. Auxiliary hydraulics become essential if you plan multiple attachment swaps each week.

2. Maintenance and Safety Considerations

Good up keep preserves machine value and prevents dangerous site accidents.

· Routine inspections: Check hydraulic hoses for cracks before every work shift. Look for track wear and engine oil levels.

· Hydraulic system care: Change hydraulic oil and filters following factory recommended hour intervals. Dirty fluid speeds component failure.

· Engine servicing: Replace fuel filters and air filters regularly. Clean radiator cooling fins to avoid engine overheating.

· Operator training: Teach users load limits and safe turning rules. Untrained operators create tipping risks on uneven ground.

· Attachment checks: Inspect hammer, auger, and thumb connections before fitting onto main machine. Loose fittings cause onsite accidents.

Safety hardware adds purchase cost. These parts lower accident risk and keep your operation aligned with local work regulations.

3. Leading Manufacturers and Suppliers

Global market carries many competitive product lines for compact digging equipment.

· Kubota: World renowned for reliable small size digging machines. Price bracket $19,000 $35,000.

· Yanmar: Delivers durable compact diesel power for light earth moving work. Price bracket $17,000 $32,000.

· Bobcat: Strong brand presence within North American equipment rental markets. Price bracket $18,500 $34,000.

· Takeuchi: Focuses on high durability compact diggers for heavy daily use. Price bracket $16,000 $30,000.

· Mid range Chinese factories: Offer CE and EPA compliant compact digging equipment at balanced price points. Price bracket $7,000 $20,000.

· Budget focused makers: Supply cost effective units for occasional private home projects. Price bracket $4,500 $11,000.

4. Conclusion

Total purchase cost varies widely for compact one ton digging machines. Entry level models start around $4,500. Fully loaded premium certified units can reach $35,000. Operating weight, engine grade, hydraulic setup, attachments, and brand status drive most cost differences. Buying pre owned equipment or renting delivers practical ways to cut capital spending. Compare product specs from multiple suppliers and account for routine maintenance expenses before final purchase. Reach out to qualified vendors to get customized quotes matching your exact project needs.If you seek reliable compact earth moving equipment with global certification support, contact TIANLU Excavator to locate suitable equipment for your project requirements.
